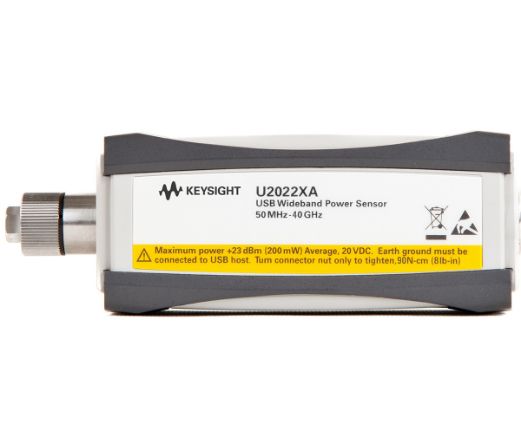

Keysight Technologies U2022XA
40 GHz USB Pk and Avg Power Sensor (-30 to +20 dBm, gated)
The Keysight U2022XA is a USB peak and average power sensor that allows you to perform measurements directly from your PC. The U2022XA is part of the U2020 X-Series and is supported by the Keysight BenchVue software. BenchVue makes it easy to control your power meter to log data and visualize measurements in a wide array of display options without any programming.
Simply connect the sensor to your PC installed BenchVue BV0007B Power Meter/Sensor Control and Analysis app to perform complex pulse analysis and standard average power measurement.
The Keysight, formerly Agilent U2022XA also comes with a built in external trigger in and out. External trigger will enable accurate trigger of small signals close to the signal noise floor. With the built-in trigger in/out connection on the Keysight U2020 X-series USB power sensors, you can connect an external trigger signal from a signal source or the device under test directly to the USB sensor through a standard BNC to SMB cable.
Key Features and specifications of the U2022XA:
- Frequency range of 50 MHz to 40 GHz
- Wide dynamic range of -30 to 20 dBm (peak/gated), -45 dBm to 20 dBm (average only mode)
- 30 MHz video bandwidth
- Single shot real time capture at 80 Msample/sec per second
- Internal zeroing and calibration
- High measurement speed of up to 25,000 readings/second (free run/fast buffer mode)
The Keysight U2022XA peak power sensor is available for rent or lease at TRS-RenTelco. We have an experienced team of metrologists and technicians that calibrates every product to stringent standards in our 50GHz ANSI/NCSL Z540-1 compliant laboratory. Contact us to know more or request a quote today.
- Configurations
- Resources
--, 100, 301
See Configuration Details
-
301
Power sensor cable; 5-ft (1.5m)
-
100
Connector 2.4mm
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cable Main Assembly
Qty: 1 -
Cable Trigger
Qty: 2 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 100, 301
See Configuration Details
-
100
Connector 2.4mm
-
301
Power sensor cable; 5-ft (1.5m)
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cable Main Assembly
Qty: 1 -
Cable Trigger
Qty: 2 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 100, 301, H50
See Configuration Details
-
100
Connector 2.4mm
-
301
Power sensor cable; 5-ft (1.5m)
-
H50
USB Wideband Power Sensor (50MHz - 50GHz)
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cable Main Assembly
Qty: 1 -
Cable Trigger
Qty: 2 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies U2022XA Spec Sheet
