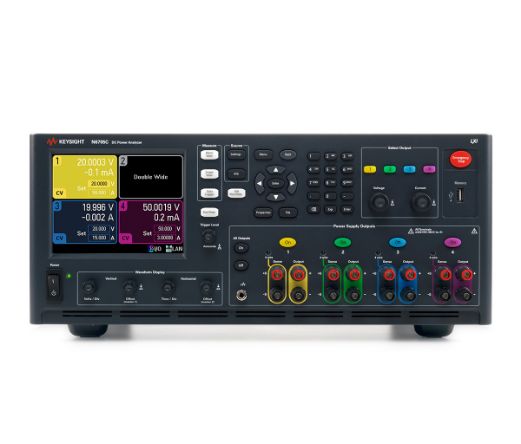

Keysight Technologies N6705C
4-slot mainframe holds up to 600 W of total power
The Keysight (formerly Agilent) N6705C is a Power Analyzer that can be used to analyze DC Voltage. The N6705C comes with DMM, Scope, and Data Logger features. The 4-slot mainframe holds up to 600 W of total power and up to 4 modules. More than 30 DC power modules to choose from (modules ordered separately).
Here are the top specifications and features of the Keysight N6705C:
- Voltmeter accuracy: Up to 0.025% 50 ?V, up to 18 bits
- Ammeter accuracy: Up to 0.025% 8 nA, up to 18 bits
- Arbitrary waveform generator function: Bandwidth up to 100 kHz, output power up to 500 W
- Scope function: Digitizes voltage and current at up to 200 kHz, 512 kpts, up to 18 bits
- Data logger function: Measurement interval from 20 ?s to 60 s, max of 500 M readings per datalog
- 4 GB of non-volatile data storage for data log, scope traces, instrument settings
If you are looking to rent or lease the Keysight (formerly Agilent) N6705C, request a quote today at TRS-RenTelco.
- Configurations
- Resources
--, 056
See Configuration Details
-
056
Control and analysis Software, fixed perpetual license
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Connector 8-Position
Qty: 3 -
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Connector 8-Position
Qty: 3 -
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies N6705C Spec Sheet
Understanding IoT Battery Life Measurements
