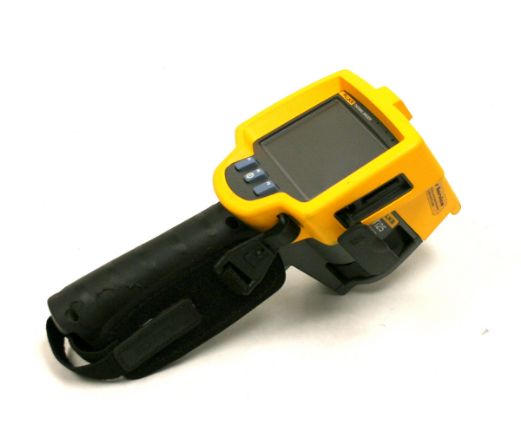

Fluke TI25

The Fluke Ti25 thermal imager enhances problem detection and analysis by measuring even small temperature differences with its IR fusion technology. Scroll through different viewing modes, such as full IR thermal, picture-in-picture, and automatic-blend visual and thermal images to quickly identify thermal problems.

With the Fluke Ti25 thermal imager, you can stop worrying about taking notes on the job. Simply record the findings by speaking into the camera. You can record and save voice annotations along with the images needed in order to find problems.

Operate the thermal imager with an NETD intuitive three-button menu. The Fluke Ti25, 9Hz thermal imager is built for tough work environments such as field use and can withstand a drop from up to 2 meters (6.5 feet)..

Use the high-performance, radiometric thermal imager with IR fusion to monitor and troubleshoot electrical installations, electro-mechanical equipment, process equipment, HVAC/R equipment, and more.

Features and Specifications

• Temperature accuracy:  /- 2 degrees C or 2 percent (whichever is greater)
• Temperature measurement range (not calibrated below -10 degrees C): -20 degrees C to 350 degrees  C to 50 degrees C (14 degrees F to 122 degrees F)
• Storage temperature: -20 degrees C to 50 degrees C (-4 degrees F to 122 degrees F) without batteries
• IP54 rating
• Palettes: Iron bow, blue-red, high contrast, amber, hot metal, grey

See the product data sheet for a complete list of specs. If you need thermal sensitivity up to 45 mK, check out the Fluke Ti32 model.

Fluke Ti25 Accessories

• Thermal imaging camera with 20mm lens
• AC power supply/battery charger (including mains adapters)
• SD memory card
• SD card reader (USB) for downloading images into your PC
• SmartView analysis and reporting software with lifetime free software upgrades
• Rugged hard-shell carrying case
• Soft transport bag
• Hand strap
• User manual
• Warranty registration card

Optional Accessories

• Fluke Ti car charger
• Fluke Ti visor

What Are the Benefits of IR Fusion Technology?

The IR fusion technology in Fluke Ti25 thermal imager combines a video-rate infrared camera with a visible-light camera, so you can view and record problems in infrared and visible radiation even in rugged work environments.

What Is the Price of the Ti25 Thermal Imager?

The Fluke Ti25 is approximately $5,400. Speak to our sales team to learn about accessories, in-house financing, seasonal offers, and fast delivery options.

 Rent, lease, or buy Fluke Ti25 thermal imagers online at TRS-RenTelco. See our full range of thermal imagers. To detect air, steam, gas, or vacuum leaks, view the Fluke II900 sonic industrial imager.

Contact us by filling out the form with your name, email address, and details of the items to get the product information. You can also call us directly at 800.874.7123.
