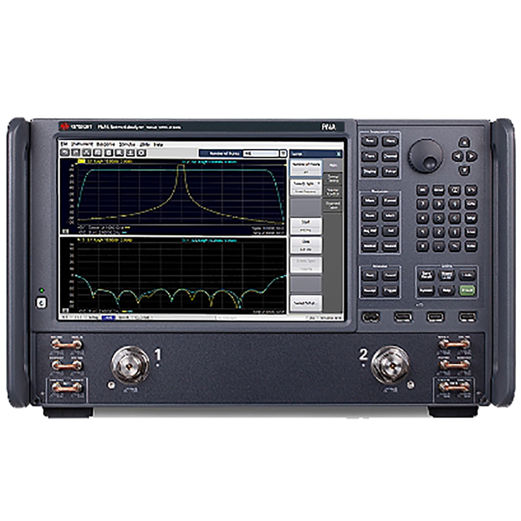

Keysight Technologies N5247B-219
2-port, 10 MHz - 67 GHz PNA-X Network Analyzer, 1.85 mm (m)
Rent or Lease
Keysight Technologies - N5247B-219
More than just a vector network analyzer, the PNA-X is the world’s most integrated and flexible microwave test engine for measuring active devices such as amplifiers, mixers, and frequency converters. The hardware includes two internal signal sources, a signal combiner, S-parameter and noise receivers, pulse modulators and generators, and a set of switches and RF access points. These hardware features provide a powerful core for a broad range of linear and nonlinear measurements, all with a single set of connections to your device under test.
N5247B-219 Product Highlights
• Simplify your test system by replacing an entire rack of equipment with one PNA-X network analyzer.
• Reduce test time with the widest range of single-connection measurement applications.
• Accurately test linear and nonlinear device characterization using advanced error correction.
• Choose from the industry's widest range of measurement applications for speed, accuracy, and ease of use in advanced RF test.
• Accelerate insight into component behavior using a multitouch display and intuitive user interface.
Keysight Technologies & TRS-RenTelco
TRS-RenTelco is a proud partner of Keysight Technologies and offers a wide range of rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry. Our close relationship with Keysight Technologies allows us to ensure we have the right Network/Impedance Analyzers solution for your job.
Renting Network/Impedance Analyzers
With TRS-RenTelco renting Network/Impedance Analyzers equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 5000 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.
