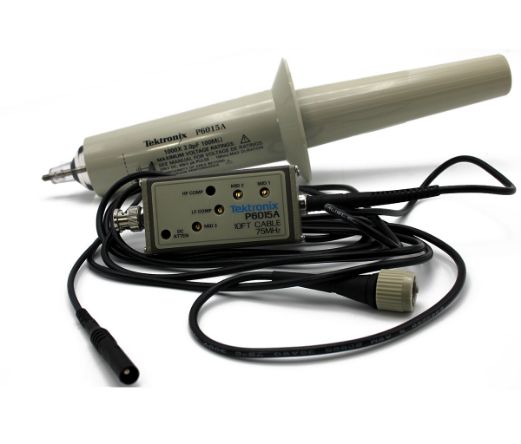

Tektronix P6015A
75 MHz Passive High Voltage Probe
For heavy duty high-performance measurements of voltages over 2.5 kV, the P6015A is the industry standard. You can measure DC voltages up to 20 kV and pulses up to 40 kV. The 75 MHz bandwidth enables you to capture fast, high-voltage signals. The P6015A uses an environmentally safe silicone compound for a dielectric and never needs refilling. Other features include: a 7-49 pF compensation range, small compensation boxes which fit on adjacent amplifier inputs, and a readout option for use with Tektronix digital scopes. With the readout option, displayed voltage amplitude values will be the actual signal value rather than understated by a factor of 1,000. Using the readout version with other than Tektronix digital scopes may result in an erroneous readout display.
Read More
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Case
Qty: 1 -
Banana Plug Tip
Qty: 1 -
Ground Lead
Qty: 1 -
Probe Body
Qty: 1 -
Smooth Probe Tip 10/32 in Internal Thread
Qty: 1 -
Clip Crocodile
Qty: 1 -
Handle Probe
Qty: 1 -
Hook Tip Probe
Qty: 1 -
Manual
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Tektronix P6015A Manual
Tektronix P6015A Spec Sheet
