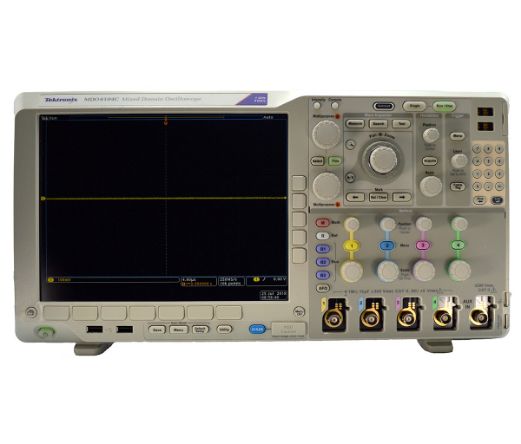

Tektronix MDO4104C

4 Analog Channels 1GHz Bandwidth Models, 16 Digital

The Tektronix MDO4104C mixed domain oscilloscope is a 6-in-1 integrated oscilloscope that includes a spectrum analyzer, arbitrary/ function generator, logic analyzer, protocol analyzer and Digital Voltmeter/frequency counter. When configured with an integrated spectrum analyzer, Tektronix MDO4104C has the distinction of being the only instrument that provides simultaneous and synchronized acquisition of analog, digital and spectrum; ideal for incorporating wireless communications (IoT) and EMI troubleshooting.

With the capabilities you need to solve the toughest embedded design challenges quickly and efficiently, the MDO4000C is completely customizable and upgradeable allowing you to add the instruments you require now - or as the need arises.

Tektronix MDO4104C - Features and Specifications:

  • Synchronized analysis of analog, digital, and RF signals for easy system-level troubleshooting
  • 4 analog channels
  • 16 digital channels MagniVu
  • 1 GHz bandwidth
  • 350 ps rise time
  • Digital phosphor technology with High-Speed Waveform Capture
  • 5 GS/s sample rate
  • 20 M record length on all channels
  • Over 125 trigger combinations providing a complete set of triggers
  • With more than 340,000 waveform/s capture rate, identify glitches and other infrequent transient signals quickly
  • Optional built-in 3 GHz or 6 GHz spectrum analyzer
  • Optional arbitrary/function generator
  • Optional 16-channel logic analyzer w/ 20 M record length on all channels
  • Optional protocol analyzer

The Tektronix MDO4104C comes with 365-day customer support and is available for rent or lease at TRS-RenTelco.

Contact us to learn more or request a quote today.

Read More
  • Configurations
  • Resources
--, MDO4MSO
See Configuration Details
  • MDO4MSO

    Installed Option; (16) Digital Channels

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Marker Set

    Qty: 1
  • Probe Tip (Set Of 10)

    Qty: 1
  • Cord Power

    Qty: 1
  • Tips Extension Ground (kit of 20)

    Qty: 1
  • Ground Lead 3 in

    Qty: 8
  • Ground Lead 8 in

    Qty: 2
  • IC Grabber

    Qty: 20
  • Holder Probe Tip

    Qty: 1
  • Hook Tip

    Qty: 4
  • Ground Lead

    Qty: 4
  • Probe

    Qty: 4
  • Accessory Pouch

    Qty: 1
  • Cover Front

    Qty: 1
  • Probe MSO 16-Channel

    Qty: 1
  • Manual TPP1000 Probes

    Qty: 1
  • Manual

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Marker Set

    Qty: 1
  • Cord Power

    Qty: 1
  • Hook Tip

    Qty: 4
  • Ground Lead

    Qty: 4
  • Probe

    Qty: 4
  • Accessory Pouch

    Qty: 1
  • Cover Front

    Qty: 1
  • Manual

    Qty: 1
  • Adapter N(m) - BNC(f)

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.
