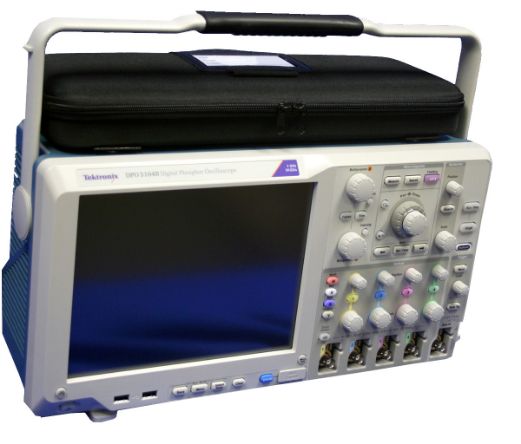

Designing with today's faster data rates and tighter timing margins requires an oscilloscope with outstanding signal acquisition performance and analysis capabilities. The Tektronix DPO5104B, part of the brand's MSO/DPO5000B Series oscilloscopes, provides exceptional signal fidelity, with 1 GHz bandwidth and 10 GS/s sample rate, along with advanced analysis and math capabilities, on your bench and in your lab. Run Windows-based analysis software right on the oscilloscope. Point and click Visual Triggers enable you to capture complex signals with ease.
MSO models include 16 digital timing channels, and all models can be equipped to decode common serial protocols, providing a comprehensive view of your systems.
Key analysis features offered by the DPO5104B:
- Wave inspector® controls provide easy navigation and automated search of waveform data
- Suite of advanced triggers, with standard Visual Trigger and Search
- 53 automated measurements, selectable filtering, waveform math and FFT analysis
- Waveform histogram, eye diagram, TIE (jitter/timing) measurement and analysis
- User-definable math using MATLAB, Visual Studio and Excel
- Optional analysis for memory, advanced jitter, serial data, power and Wideband RF
We offer the Tektronix DPO5104B for rent or lease at TRS-RenTelco. Our products are calibrated to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory by expert metrologists and technicians. Request a quote today.
