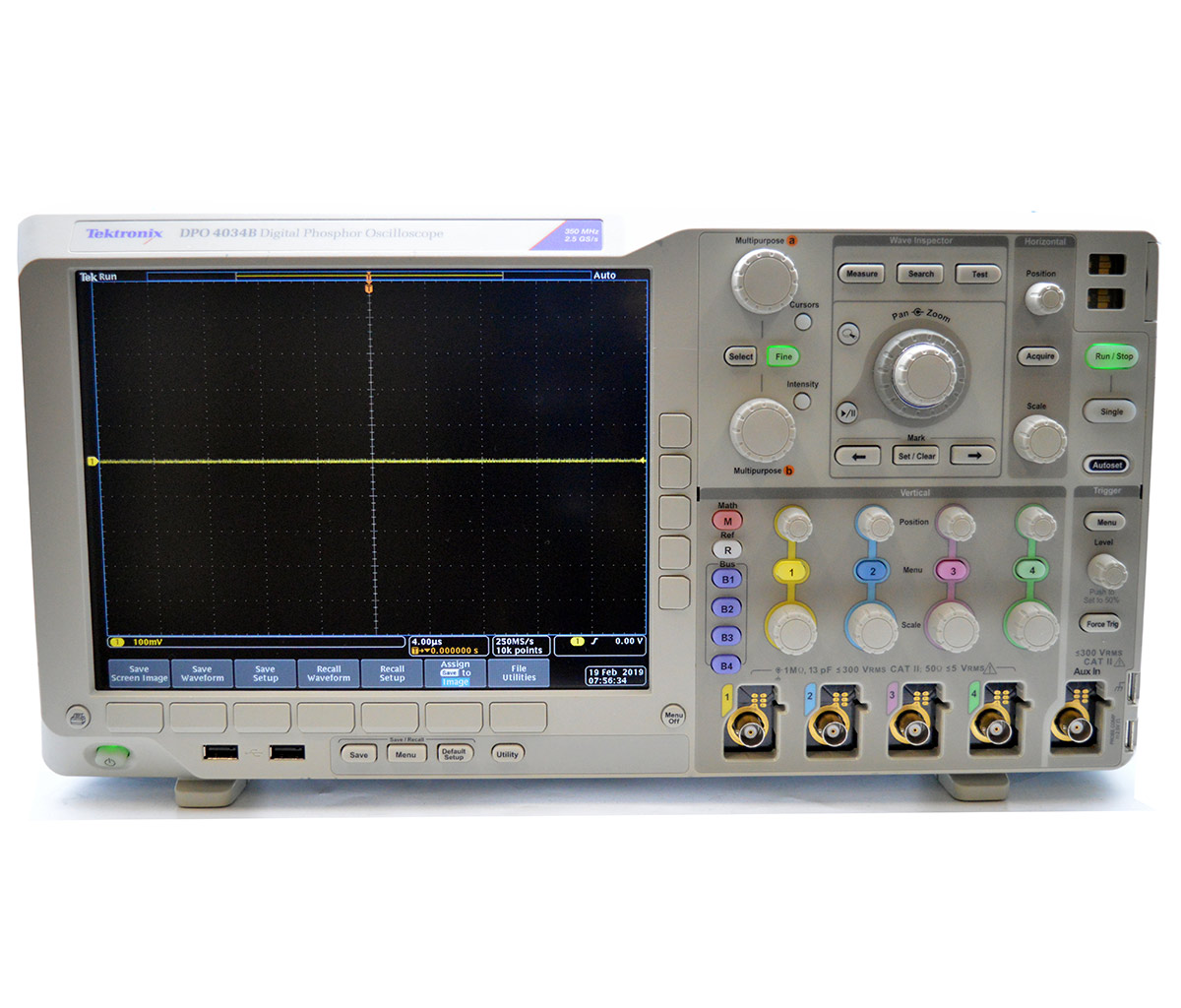

The Tektronix DPO4034B Mixed Signal Digital Phosphor Oscilloscope allows you to analyze up to 20 analog and digital signals, all with a single instrument.
Detect problems quickly in complex designs. With the DPO4034B, you get a deep record length of 20M points standard - on all channels. You can record extended windows of signal activity while achieving fine timing resolution. The Wave Inspector controls on the DPO4034B provide feature-rich tools for automated serial and parallel bus analysis, rapid waveform navigation, automated power analysis, and limit and mask testing to streamline and accelerate debugging your design.
Use the DPO4034B to find anomalies quickly and capture them, to search your waveform record for the event and to analyze its features and your device's behavior in response to it.
The Tektronix DPO4034B's digital phosphor technology has a fast waveform capture rate (higher than 50,000 wfm/s) offering a high probability of identifying the infrequent problems common in digital systems quickly, provides you with prompt insight into the actual operation of your device.
Tektronix DPO4034B - Features and Specifications:
- 20 Megapoint record length on all channels
- 2.5 GS/s Sample Rate
- Set of advanced triggers
- Greater than50,000 wfm/s Maximum Waveform Capture Rate
- Automated Triggering, Decode, and Search on Parallel Buses
- Decode, automated serial triggering, and search options
- XGA color display - 10.4 in. (264 mm)
- Lightweight at 5.8 in. (147 mm) deep and 11 lb. (5 kg)
- Data Storage, Printing, and Connecting a USB Key through USB 2.0 Host Ports on Front and Rear Panel
The Tektronix DPO4034B is available for rent or lease at TRS-RenTelco with 365-day customer support. Contact us to know more or request a quote today.
