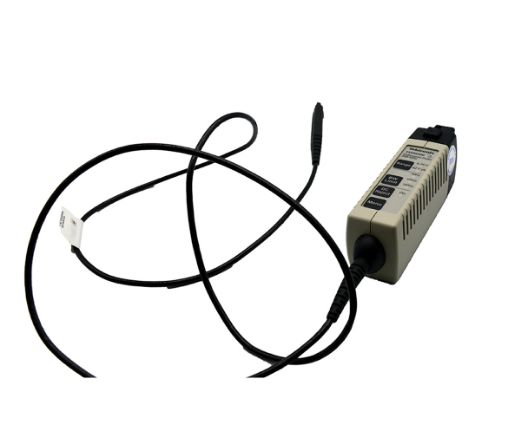

Tektronix TDP0500
500 MHz High Voltage Diff Probes with TekVPI Interface
Key performance specifications
- 1 GHz and 500 MHz probe bandwidth
- <1 pF differential input capacitance
- 1 MO differential input resistance
- ?42 v (DC pk AC) differential input voltage
- >18 dB CMRR (at 250 MHz 50X attenuation)
Key features
- Outstanding electrical performance
- Selectable bandwidth-limiting filters
- DC reject
- Versatile DUT connectivity
- Small compact probe head for probing small geometry circuit elements
- Straight pin, square pin, solder down, variable pitch standard accessories
- Robust design for reliability
- Easy to use
- Provides automatic units scaling and readout on the oscilloscope display
- TDP1000, TDP0500
- Connect directly to oscilloscopes with the TekVPI? probe interface
- Easy access to scope-displayed probe menu for probe setup control and operating status information
- Remote GPIB/USB probe control through the oscilloscope
- AutoZero ? zeros out output offset
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Marker Kit
Qty: 1 -
Grabber
Qty: 3 -
Accessory Kit Tip Saver (Set Of 2)
Qty: 1 -
Adapter Y-Lead
Qty: 2 -
Ground Lead (Set of 2)
Qty: 1 -
Box Accessory Plastic
Qty: 1 -
Accessory Kit Straight Tip
Qty: 1 -
Lead Dual 1 in Solder Down Connectors
Qty: 1 -
Adapter Solder 3 in
Qty: 1 -
Longhorn Adapter
Qty: 2 -
Carry Pouch
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Tektronix TDP0500 Spec Sheet
