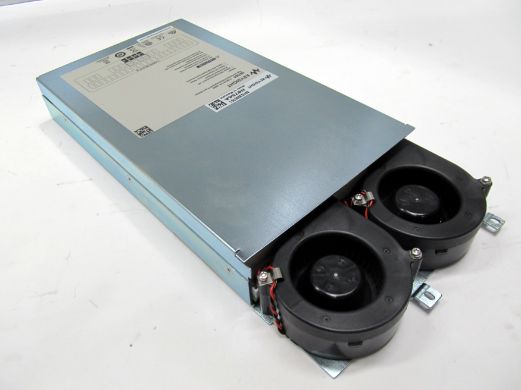

Keysight Technologies N6756A
60V, 17A, 500W, double-wide Autoranging DC Power Module
Achieve increased test flexibility with autoranging outputs and higher current at more voltages with the Keysight N6756A autoranging DC power module. The high-performance N6756A offers lower noise and an improved accuracy of 0.06 percent for precise testing.
Fast up and down programming allows for testing up to 50 times faster than a conventional power supply. Best suited for automatic test equipment (ATE) systems in R&D, design validation, and manufacturing, the N6756A DC power module gives fast command processing time and output speed for better throughput.
Keysight N6756A Features and Specifications:
- Output voltage: 0V to 60V
- Output current: 17A
- Output power: 50W to 500W
- Programming accuracy (at 23 degree C 5 degrees C)
o Voltage: 0.06 percent 25 mV
o Current: 0.1 percent 12 mA - Ripple and noise (20Hz to 20MHz)
o Voltage peak-to-peak: 6 mV
o Voltage: 1 mV rms
o Current: 4 mA rms
The Keysight (formerly Agilent) N6756A 60V, 17A, 500W, double-wide autoranging DC power module is available for rent or lease at TRS-RenTelco with 24/7 support. To learn more about our test equipment, contact us at 800.874.7123.
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Jumper Barrier Block 2-Position
Qty: 2 -
Connector Large 4-Pin
Qty: 1 -
Screw M3 x 0.5 6 mm TORX #10
Qty: 4
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 054
See Configuration Details
-
054
High-Speed Test Extensions
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Jumper Barrier Block 2-Position
Qty: 2 -
Connector Large 4-Pin
Qty: 1 -
Screw M3 x 0.5 6 mm TORX #10
Qty: 4
*This item has already been added to your cart. Check your cart for quantity and availability.
