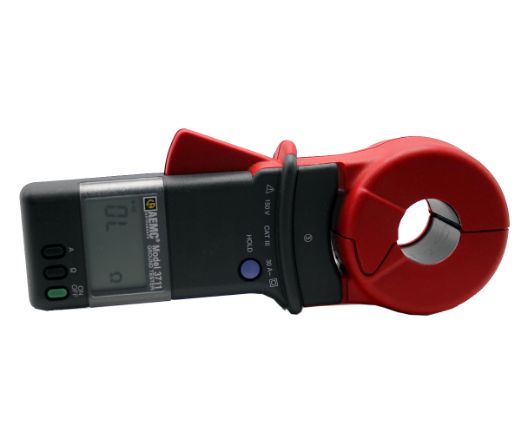

AEMC 3711
Clamp-on Ground Resistance Tester
The AEMC Clamp-on Ground Resistance Tester Model 3711 measures ground rod and small grid resistance through any season, without the use of auxiliary ground rods. The Model 3711 simply clamps around the ground conductor or rod and measures the resistance to ground.
This device weighs just 2.2 Lbs. and has dimensions of 9.25 X 3.94 X 2.17 inches in size. It has a wide range of ground resistance measurement from 1 to 1200 ohm. It can also measure ground or leakage current from 1 to 30 milli amperes. The device comes with a hard-carrying case, a calibration loop, and a 9V alkaline battery.
TRS-RenTelco provides the AEMC 3711 Clamp-on Ground Resistance Tester for rent or for purchase with 24/7 customer support. We have an experienced team of metrologists and technicians that calibrates every product to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. Contact us to know more or request a quote today.
- Configurations
- Resources
- FAQsAI
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Battery 9 V
Qty: 2 -
Calibration Loop 25 Ohm
Qty: 1 -
Manual User
Qty: 1 -
Case Hard
Qty: 1 -
Software Ground Tester Workbook Ver12
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
AEMC 3711 Spec Sheet
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What is the AEMC 3711?
A clamp-on ground resistance tester for measuring ground rod and grid resistance without auxiliary ground rods.
How does the AEMC 3711 function?
It clamps around a ground conductor or rod to quickly and accurately measure resistance to ground.
What are the key features of the AEMC 3711?
Simple clamp-on operation, direct reading of resistance, leakage current measurement, and a large jaw design for various conductor sizes.
What measurements can the AEMC 3711 perform?
Ground resistance, continuity, and ground loop resistance, as well as ground leakage and phase current.
Is the AEMC 3711 suitable for field use?
Yes, with its rugged construction and ergonomic design, it is designed for reliable field use.
