Teseq NSG 438
30 kV ESD Simulator

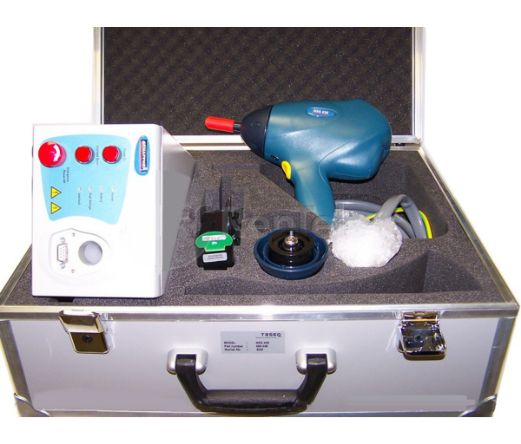

The Teseq NSG 438 is an ESD simulator that is simple and convenient to use. The NSG 438 system generates discharge pulses of 200V to 30kV, in both air discharge and contact discharge operation, and sets the industry standard for ease-of-use with all test controls on the pistol. The new Teseq NSG 438 is an instrument that fulfills the requirements of all known ESD commercial, telecom, military and automotive standards including the IEC, ANSI, SAE, ISO and MIL standards. Each R-C network is individually tested and certified to be compliant with the relevant standard. Setups for IEC 61000-4-2 and the automotive standard ISO 10605 are pre-programmed, ensuring that the correct settings are made automatically.
The system also checks that the correct discharge network is inserted. The complete set of test conditions can be called up on the display at any time. Test probes can be readily exchanged and various networks can simply be pushed into place. Probes and discharge networks are coded and generate an error indication in the event of incorrect usage with a defined test. Like all Schaffner ESD simulators, the NSG 438 regulates the tip voltage and keeps the capacitor fully charged ensuring compliance with the IEC specified 5-second hold-up time. Pre-discharge corona can drain charge from an NSG 438 ESD simulator's storage capacitor, thereby reducing the test voltage level and causing inaccurate and often inconsistent results. This is especially important when testing in Air Discharge mode at levels of 8kV and higher. The NSG 438 indicates the actual cap voltage at the time of the discharge, giving the user confidence that the test is occurring at a repeatable level.
If you are looking to rent or lease a new or well-maintained used Teseq (Schaffner) NSG 438 ESD Simulator, get in touch with us at TRS-RenTelco. Our experienced team of metrologists and technicians calibrate each product to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laborat
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Contact Discharge Tip
Qty: 1 -
Discharge Network (INA 4380/150pF/330 ohm)
Qty: 1 -
Air Discharge Tip
Qty: 1 -
Discharge Pistol
Qty: 1 -
Cradle for Discharge Pistol
Qty: 1 -
Discharge Ball Silver
Qty: 1 -
AC Adapter Input 100 V - 240 V Output 24 V 2.5 A
Qty: 1 -
Carrycase Hard
Qty: 1 -
Base Station NSG 435
Qty: 1 -
Manual User
Qty: 1 -
Interlock (Input) Connector
Qty: 1 -
Connector Interlock Output
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Teseq NSG 438 Spec Sheet
Teseq ESD Simulators - NSG 435 / NSG 437 / NSG 438 / NSG 439
