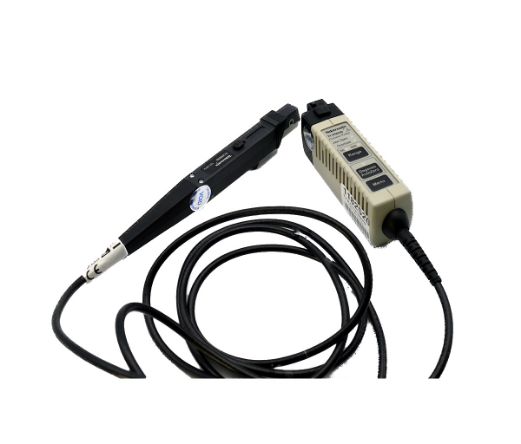

Tektronix TCP0030

AC/DC Current Probe

The Tektronix TCP0030 AC/DC Current Probe can be used to measure both alternating current (AC) and direct current (DC). The range of current measurements that this device can carry out with accuracy, ranges from 1mA 30A.

Features & Benefits of the Tektronix TCP0030 current probe:

  • Easy to Use and Accurate AC/DC Current Measurements
  • Connects Directly to DPO7000 and DPO4000 Series Oscilloscopes Using the New TekVPI Probe Interface
  • Provides Automatic Units Scaling and Readout on the Oscilloscope Display
  • Split-Core Construction Allows Easy Circuit Connection
  • DC to >120 MHz Bandwidth
  • 30 A RMS Maximum Current Capability
  • 50 A Peak Pulse Current Capability
  • High Accuracy with Typically Less than 1% DC Gain Error
  • Accurately Measures Current Levels as Low as 1 mA
  • Low Noise and DC Drift
  • Easy to Degauss and Autozero
  • Setup Controls and Probe Status/Diagnostic Indicators are Provided on Both the Probe Hardware, and via an Easy-to-Access Oscilloscope UI Display Menu
  • Safety Certified for U.S. and Canada

Applications:

  • Power Supplies
  • Semiconductor Devices
  • Power Inverters/Converters
  • Electronic Ballasts
  • Industrial/Consumer Electronics
  • Mobile Communications
  • Motor Drives
  • Transportation Systems

TRS-RenTelco provides the Tektronix TCP0030 AC/DC Current Probe for rent or purchase along with 24/7 customer support. Our experienced team of metrologists and technicians calibrate each product to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. Request a quote today.

Read More
  • Configurations
  • Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Ground Lead

    Qty: 1
  • Carry Pouch

    Qty: 1
  • USB Drive with Software and Manuals

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.
