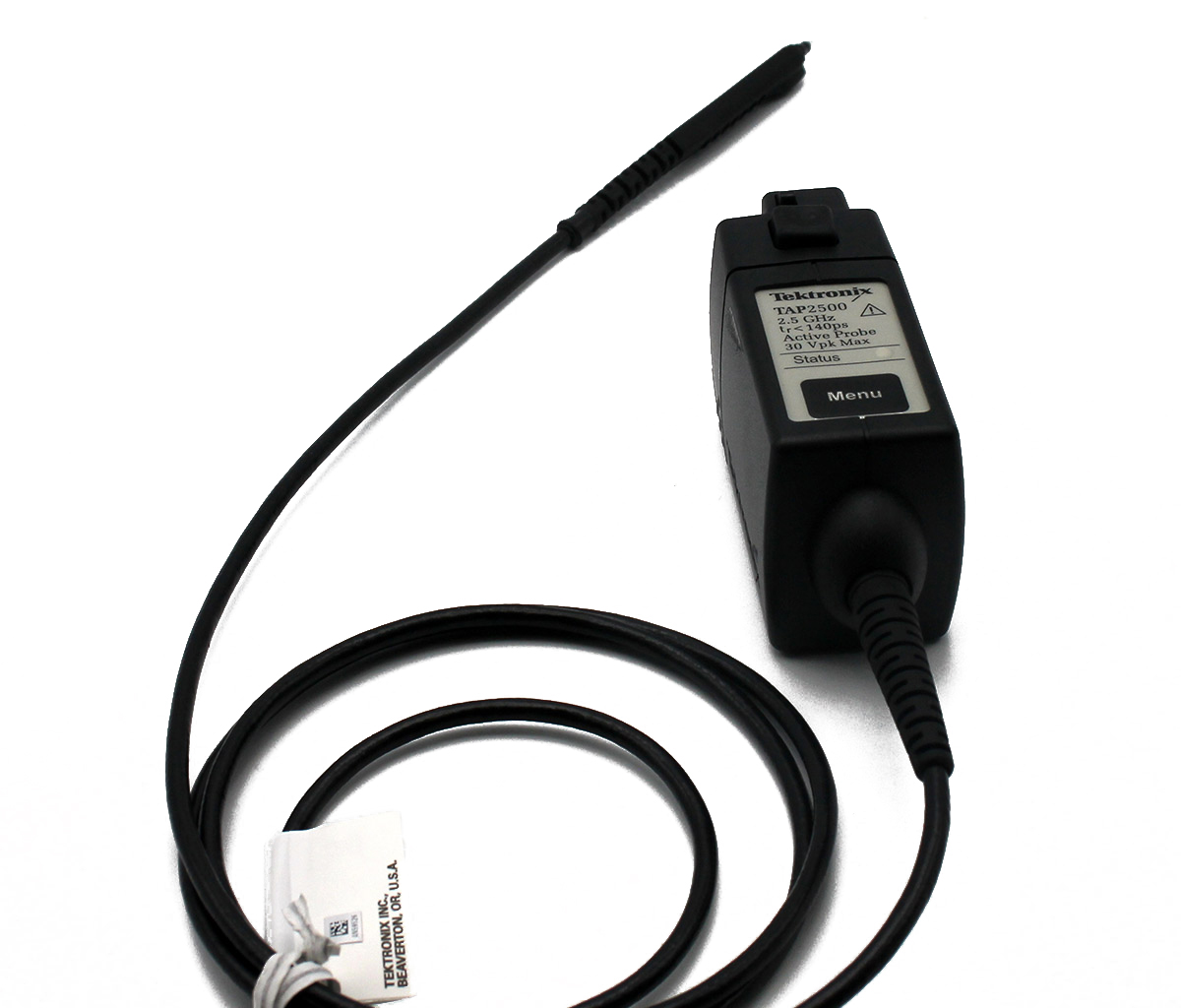

Tektronix TAP2500

2.5GHz Active Probe

Features & Benefits:

  • Outstanding Electrical Performance
  • High Probe Bandwidth
  • Fast Probe Rise Time
  • Excellent Signal Fidelity
  • <=0.8 pF Input Capacitance
  • 40 kOhm Input Resistance
  • -4 V to 4 V Input Dynamic Range
  • -10 V to 10 V DC Input Offset Range
  • /-30V (DC pkAC) Max
  • Input Voltage (Non-Destruct) Versatile Mechanical Performance
  • Small Compact Probe Head for Probing Small Geometry Circuit Elements
  • DUT Attachment Accessories Enable Connection to SMDs as Small as 0.5 mm Pitch
  • Robust Design for Reliability Easy-to-Use
  • Connects Directly to DPO7000 and DPO4000 Series Oscilloscopes Using the New TekVPI Probe Interface
  • Provides Automatic Units Scaling and Readout on the Oscilloscopes Display
  • Easy Access to Oscilloscope Probe Menu Display for Probe Status/Diagnostic Information and to Control Probe DC Offset Applications
  • Verification, Debug and Characterization of High-speed Designs
  • Signal integrity, Jitter, and Timing Analysis
  • Manufacturing Engineering and Test
  • Signals with Voltage Swings up to 8 Vp-p

If you are looking for a new or well-maintained Tektronix - TAP2500 2.5GHz active probe for rent, lease or purchase, contact us or request a quote today.

Read More
  • Configurations
  • Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Kit Wrist Strap

    Qty: 1
  • Marker Kit

    Qty: 1
  • Probe Tip (Set Of 10)

    Qty: 1
  • Lead Set

    Qty: 1
  • Pogo Pin (Set of 3)

    Qty: 1
  • Adapter Socket Square Pin (Set Of 3)

    Qty: 1
  • Spring Adapter (Pack Of 3)

    Qty: 1
  • Probe Tip Suretoe

    Qty: 1
  • Lead Customizable Ground

    Qty: 1
  • Box Accessory Plastic

    Qty: 1
  • Carry Pouch

    Qty: 1
  • IC Grabber

    Qty: 2
  • CD Product Documentation

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

Buy Used

In stock now. Request Quote for pricing.
