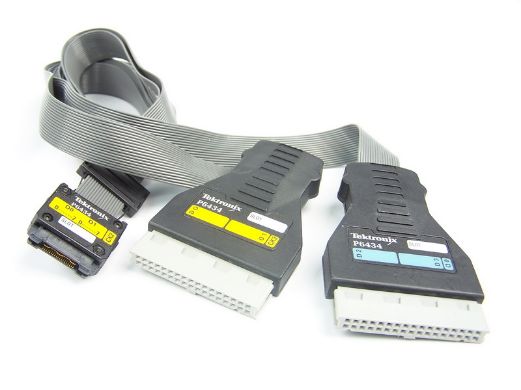

Tektronix P6434
34 Channel Logic Probe
Data Acquisition Probe for TLA7XX Number of input channels: 34 (32 data and 2 clock/qualifier channels) Input impedance: 20 kOhms /-1% in parallel with 2 pF /- 0.2 pF Threshold accuracy: 100 mV Channel-to-channel skew: <150 ps Delay time from probe tip to module end: 7.33 ns (The approximate length of the probe is 1.6 m or 62 in.) Max. operating swing time: 8 V peak-to-peak Probe overdrive: The greater of 300 mV or 25% of signal swing Max. nondestructive input signal to probe: 15 V Max. sync clock rate: 200 MHz in full speed mode (5 ns between active clock edges) Min. sampling period 4 ns (0.5 ns w/MagniVu) Measured typical signal loading: AC load: 2 pF; DC load: 20 kOhms
