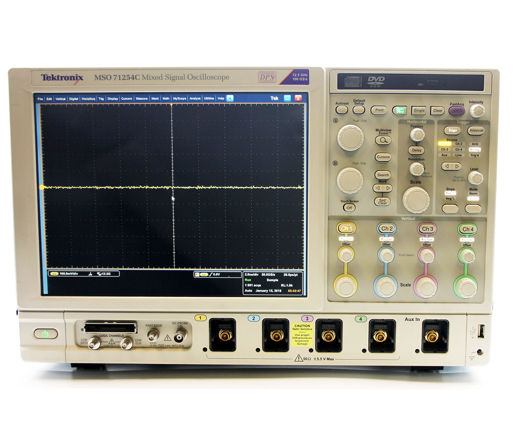

Tektronix MSO71254C
4+16-CH, DIGITAL, 12.5GHz Mixed Signal Oscilloscope
Rent or Lease • Buy Used From $69,000
The Tektronix MSO71254C is a 12.5 GHz Mixed Signal Oscilloscope; and comes equipped with 4 analog / 16 logic channels. The MSO/DPO70000 Series oscilloscope delivers exceptional signal acquisition performance and analysis capability. Discover your real signals and capture more signal details with the industry's highest waveform capture capability. Automate setup, acquisition and analysis of high-speed serial data signals with a toolset engineered to deliver faster design and compliance testing.
The following are the top capabilities that the Tektronix MSO71254C comes equipped with:
- Capture up to 100GS/sec on analog channels and 12.5GS/sec on digital channels in a single instrument
- Excellent signal fidelity, minimum noise and highest effective number of bits (ENOB)
- Industry's highest waveform capture rate on all 4 channels
- 16 logic channels with 80 psec timing resolution
- Analog/digital probing with a variety of connectivity support options
- Industry's fastest 33 GHz TriMode? probe and 2.5 GHz differential logic probe
- Pinpoint? triggering and high-speed serial pattern triggering up to 6.25 Gb/s
- Comprehensive digital serial analysis solution - probing, triggering, decode and analysis
- Advanced Serial Analysis options for PCIe, I2C, SPI, RS-232/422/485/UART, USB2.0, MIPI D-PHY CSI & DSI, 8b/10b, CAN, LIN, FlexRay and MIL-STD1553B
- Offline Waveform Analysis
We offer the Tektronix MSO71254C for rent and lease at TRS-RenTelco. Request a quote today.
- Configurations
- Resources
- FAQsAI
--, DSA
See Configuration Details
-
DSA
DJA,5XL,SRM
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Kit Wrist Strap
Qty: 1 -
Probe Tip (Set Of 10)
Qty: 1 -
Power Cord Notched
Qty: 1 -
Adapter TCA-BNC
Qty: 1 -
Adapter VGA - DVI Display
Qty: 1 -
Accessory Pouch
Qty: 1 -
Cable USB-A - USB-B
Qty: 1 -
Cover Front
Qty: 1 -
Adapter TCA-292MM
Qty: 4 -
Tips Extension Ground (kit of 20)
Qty: 20 -
Ground Lead 3 in
Qty: 8 -
Ground Lead 8 in
Qty: 2 -
Case Pelican Transit
Qty: 1 -
IC Grabber
Qty: 20 -
Holder Probe Tip
Qty: 2 -
Mouse Optical
Qty: 1 -
Keyboard Mini USB
Qty: 1 -
Fixture Customer Deskew
Qty: 1 -
Probe with Accessory Kit
Qty: 1 -
Case Accessory Plastic
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, MSO
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Tips Extension Ground (kit of 20)
Qty: 20
*This item has already been added to your cart. Check your cart for quantity and availability.
Show More
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What bandwidth and sample rate does the Tektronix MSO71254C provide for high-speed serial measurements?
The MSO71254C offers 12.5 GHz analog bandwidth with 100 GS/s real-time sample rate on two channels and 50 GS/s on all four analog channels simultaneously. It provides 62 MS standard record length on both analog and digital channels, with optional upgrades to 250 MS on four channels or 500 MS on four channels and 1 GS on two channels. This performance enables measurement of the latest high-speed serial standards with minimal noise and jitter.
How many digital channels does the MSO71254C mixed signal oscilloscope provide?
The MSO71254C includes 16 logic channels in addition to four analog channels, providing 20 total channels for simultaneous analog and digital signal analysis. The digital acquisition system offers 80 ps timing resolution and 12.5 GS/s sample rate, matching the analog record lengths for uncompromised mixed-signal acquisition. This enables precise channel-to-channel timing checks across multiple interfaces with up to 2.5 GHz bandwidth digital probing using P6780 logic probes.
What is iCapture capability and how does it simplify mixed signal debugging?
iCapture is a digital-to-analog multiplexer feature unique to the MSO70000 Series that allows you to view the analog characteristics of any of the 16 digital channel signals without changing probes or connections. This enables rapid verification of analog signal quality on digital lines. If a signal is working as expected, you can relegate it to digital-only view and continue testing other lines, significantly reducing setup time and connection complexity during system verification.
What serial pattern triggering capabilities does the MSO71254C offer?
The MSO71254C includes standard 6.25 Gb/s real-time serial pattern triggering for NRZ and 8b/10b encoded data streams with built-in clock recovery. Pattern lock triggering enables synchronized acquisitions of long serial test patterns with outstanding time base accuracy, useful for removing random jitter and investigating specific bit transition effects. This allows triggering on the first instance of a specified pattern to isolate pattern-dependent effects in high-speed serial links.
How does bandwidth enhancement improve measurement accuracy on the MSO71254C?
Bandwidth enhancement eliminates imperfections in frequency response all the way to the probe tip using user-selectable filters for each channel that provide magnitude and phase correction. This ensures more accurate representation of extremely fast signals with matched response across all four channels. Tektronix uniquely allows disabling bandwidth enhancement for applications requiring the highest measurement throughput, providing flexibility between maximum accuracy and maximum speed.
What compliance testing and automation options are available for the MSO71254C?
The MSO71254C supports TekExpress automated test software for standards including PCI Express Gen 1/2/3, USB 3.0, SATA Gen1/2/3, DisplayPort, MHL, MIPI C-PHY, MIPI D-PHY, MIPI M-PHY, and 10GBASE-T Ethernet. These solutions provide one-button testing with automated instrument setup, test execution, and comprehensive HTML-formatted results. DPOJET advanced jitter analysis is standard on MSO models, providing measurements for comprehensive jitter decomposition and eye-diagram analysis.
What is the MultiView Zoom feature and why is it important for long record analysis?
MultiView Zoom helps manage long acquisition records by enabling comparison and analysis of multiple waveform segments simultaneously. With optional record lengths up to 500 MS on four channels or 1 GS on two channels, MultiView Zoom provides quick navigation through millions of data points. This is essential for applications like power supply sequencing, system status monitoring, and capturing thousands of serial packets in a single acquisition while maintaining high timing resolution.
What probing solutions are available for the MSO71254C?
The MSO71254C supports the P7700, P7600, and P7500 TriMode probing system, providing perfectly matched signal connectivity with calibration to the probe tip for differential, single-ended, and common mode measurements. For digital channels, the P6780, P6750, and P6717A high-performance 17-channel logic probes provide bandwidths up to 2.5 GHz for connections to today's fast digital signals.
