Tektronix MSO58-BW500
8+ up to 32-CH, DIGITAL, 500MHz Mixed Signal

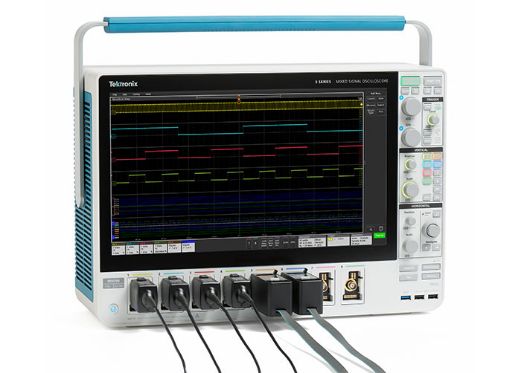

sThe Tektronix MSO58-BW500 is a mixed signal oscilloscope that comes with 8 FlexChannel inputs. With a remarkably innovative pinch-swipe-zoom touchscreen user interface, the industry's largest high-definition display, and 4, 6, or 8 FlexChannel inputs that let you measure one analog or eight digital signals per channel, the MSO58-BW500 5 Series MSO is ready for today's toughest challenges, and tomorrow's too. It sets a new standard for performance, analysis, and overall user experience. The MSO58-BW500 provides a set of advanced triggers such as runt, logic, pulse width, window, timeout, rise/fall time, setup and hold violation, serial packet, parallel data, and sequence to suit your needs.
Key features of the Tektronix MSO58-BW500:
- 500 MHz bandwidth and 800 ps rise time
- 8 analogue channels and 64 optional digital channels
- Waveform capture rate is 500,000 wfps, sample rate is 6.25GS/s on all analogue/digital channels
- Record length is 62.5 Mpoints on all analogue / digital channels
- 12 bit ADC, vertical resolution of 16 bit at =125MS/s (high resolution)
- I2C, SPI, RS-232/422/485/UART, CAN, LIN, FlexRay, USB 2.0, Ethernet, I2S, LJ, RJ, TDM serial buses
- USB host (x7), USB device, LAN, display port, DVI-D, video out connectivity
- One 10 Mohm passive voltage probe with less than 4 pF capacitive loading per channel
- Source voltage is 100 V to 240 V, 400 W maximum power consumption
- Dimension is 12.2 in (309 mm) H x 17.9 in (454 mm) W x 8.0 in (204 mm), weight is 25 lbs. (11.4 kg)
The Tektronix MSO58-BW500 is available for rent or lease at TRS-RenTelco. Our experienced team of metrologists and technicians calibrate each product to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant labo
