Tektronix 800000
2 Ch 20 GHz TDR Sampling Module

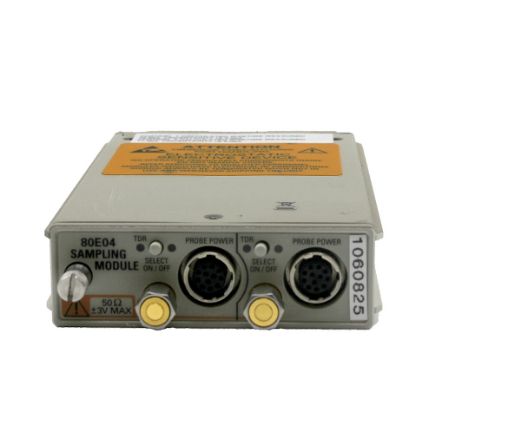

The Tektronix 80E04 is a dual-channel Time Domain Reflectometry (TDR) sampling module. The Tektronix 80E04 sampling module provides up to 70 GHz bandwidth, an acquisition rise time of 17.5 ps or less with a typical 20 GHz equivalent bandwidth, Lowest noise for analysis: 450 ?VRMS at 60 GHz, 300 ?VRMS at 30 GHz and more. The 80E04 has various key features including Independent sampler deskew which ensures easy fixture and probe de-embedding, dual channels, Precision Microwave Connectors (3.5 mm, 2.92 mm, 2.4 mm, and 1.85 mm), and Probe support.
The 80E04 can be applied for use in Transmission Line Quality, Impedance Measurements, Crosstalk Measurements applications, high-performance TDR/T measurements, measurements of Impedance profile, inductance, capacitance, and S-parameters, true differential, common mode, and single-ended measurements, and efficient fault isolation.
The Tektronix 80E04 dual-channel Time Domain Reflectometry sampling module is available for rent or lease at TRS-RenTelco. This calibrated test equipment also comes with 24/7 customer support. Request a quote for the 80E04 today.
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Kit Wrist Strap
Qty: 1 -
Cable SMA 8.5 in
Qty: 1 -
Case Transit ESD Protective
Qty: 1 -
Termination 50 Ohm SMA
Qty: 2 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Tektronix 80E04 Manual
Tektronix 80E04 Spec Sheet
