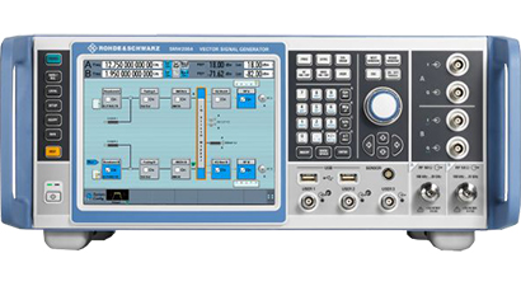

Rohde & Schwarz SMW200A-B120
100 kHz - 20 GHz, 1-Channel Vector Signal Generator, 2.92 mm (f)
Rent or Lease
Rohde & Schwarz - SMW200A-B120
The Rohde & Schwarz SMW200A-B120 is the vector signal generator for the most demanding applications. As a result of its flexibility, performance and intuitive operation, it is a perfect tool for generating complex, digitally modulated signals of high quality.
SMW200A-B120 Product Highlights
• Frequency range from 100 kHz to 20 GHz
• Optional second RF path with 100 kHz up to 3/6/7.5/20 GHz
• Versatile configuration: from single-path vector signal generator to multichannel MIMO receiver tester
• Ideal for MIMO, MSR or LTE-Advanced applications thanks to up to eight signal sources and up to 32 fading channels
• Modular architecture for optimal adaptation to the application at hand
Rohde & Schwarz & TRS-RenTelco
TRS-RenTelco is a proud partner of Rohde & Schwarz and offers a wide range of rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry. Our close relationship with Rohde & Schwarz allows us to ensure we have the right Generators solution for your job.
Renting Generators
With TRS-RenTelco renting Generators equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 5000 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.
Links to Additional Information
Rohde & Schwarz Products from TRS-RenTelco
- Configurations
- Resources
- FAQsAI
--, B120, B13XT, B9, K525, K527
See Configuration Details
-
B13XT
Wideband baseband main module
-
K526
Baseband Extension To 2 Ghz Rf Bandwidth, R&S®Smw-B9 Required (Software License)
-
B120
100 kHz to 20 GHz
-
B9
Wideband baseband generator, 500 MHz RF bandwidth, 256 MSamples
-
K525
Baseband extension to 1 GHz RF bandwidth
-
K527
Baseband extension from 1 GHz to 2 GHz RF bandwidth
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Adapter Test Port K SMA100B-B120
Qty: 1 -
Software and Manuals on USB
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, B120, B13XT, B9, B93, K526
See Configuration Details
-
B9
Wideband baseband generator, 500 MHz RF bandwidth, 256 MSamples
-
B120
100 kHz to 20 GHz
-
B13XT
Wideband baseband main module
-
B93
Solid state drive (hardware option)
-
K526
Baseband extension to 2 GHz RF bandwidth
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Adapter Test Port K SMA100B-B120
Qty: 1 -
Software and Manuals on USB
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, B120, B13XT, B22, B9, K515, K525, K527, K62
See Configuration Details
-
B120
100 kHz to 20 GHz
-
B13XT
Wideband baseband main module
-
B22
Enhanced phase noise performance and FM/Phim modulator,
-
B9
Wideband baseband generator, 500 MHz RF bandwidth, 256 MSamples
-
K525
Baseband extension to 1 GHz RF bandwidth
-
K527
Baseband extension from 1 GHz to 2 GHz RF bandwidth
-
K515
ARB memory extension to 2 Gsamples
-
K62
Additional white Gaussian noise
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Adapter Test Port K SMA100B-B120
Qty: 1 -
Software and Manuals on USB
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, B120, B13XT, B22, B9 1ST, B9 2ND, K117, K141, K142, K17, K515, K526, K54, K60, K62, K86
See Configuration Details
-
B22
Enhanced phase noise performance and FM/Phim modulator,
-
B120
100 kHz to 20 GHz
-
B13XT
Wideband baseband main module
-
B9 1ST
Wideband baseband generator, 500 MHz RF bandwidth, 256 MSamples
-
B9 2ND
Wideband baseband generator, 500 MHz RF bandwidth, 256 MSamples
-
K117
Bluetooth® 5.0
-
K141
IEEE 802.11ad
-
K142
Digital Standard IEEE 802.11ax
-
K17
Wideband differential analog I/Q outputs
-
K515
ARB memory extension to 2 Gsamples
-
K526
Baseband extension to 2 GHz RF bandwidth
-
K54
IEEE 802.11a/b/g/n/j/p
-
K60
Bluetooth® including Enhanced Data Rate
-
K86
IEEE 802.11ac
-
K62
Additional white Gaussian noise
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Adapter Test Port K SMA100B-B120
Qty: 1 -
Software and Manuals on USB
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, B120, B13XT, B22, B9, B93, K17, K515, K525, K527
See Configuration Details
-
B22
Enhanced phase noise performance and FM/Phim modulator,
-
B120
100 kHz to 20 GHz
-
B13XT
Wideband baseband main module
-
B9
Wideband baseband generator, 500 MHz RF bandwidth, 256 MSamples
-
B93
Solid state drive (hardware option)
-
K17
Wideband differential analog I/Q outputs
-
K515
ARB memory extension to 2 Gsamples
-
K525
Baseband extension to 1 GHz RF bandwidth
-
K527
Baseband extension from 1 GHz to 2 GHz RF bandwidth
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Adapter Test Port K SMA100B-B120
Qty: 1 -
Software and Manuals on USB
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, B10, B120, B13T, B14 1ST, B14 2ND, B22, B90, B93, K522
See Configuration Details
-
B13T
Signal routing and baseband main module, two I/Q paths to RF section,
-
B10
Baseband generator with realtime coder and ARB (64 MSamples)
-
B120
100 kHz to 20 GHz
-
B14 1ST
Fadig simulator
-
B14 2ND
Fading simulator
-
B22
Enhanced phase noise performance and FM/Phim modulator,
-
B90
Phase coherence
-
K522
Baseband extension to 160MHz RF bandwidth
-
B93
Solid state drive
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Adapter Test Port K SMA100B-B120
Qty: 1 -
Software and Manuals on USB
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, B10, B120, B13T, B14, B22, B90, K114, K24, K522, K62, K78, K80
See Configuration Details
-
B14
Fading simulator
-
B10
Baseband generator with realtime coder and ARB (64 MSamples)
-
B120
100 kHz to 20 GHz
-
B13T
Signal routing and baseband main module, two I/Q paths to RF section,
-
B22
Enhanced phase noise performance and FM/Phim modulator,
-
B90
Phase coherence
-
K78
Radar echo generation
-
K114
OFDM Signal Generation
-
K24
Multi function generator
-
K522
Baseband extension to 160MHz RF bandwidth
-
K62
Additional white Gaussian noise
-
K80
Bit Error Rate Tester
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Adapter Test Port K SMA100B-B120
Qty: 1 -
Software and Manuals on USB
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, B120, B13XT, B9, K525, K527
See Configuration Details
-
B120
100 kHz to 20 GHz
-
B13XT
Wideband baseband main module
-
B9
Wideband baseband generator, 500 MHz RF bandwidth, 256 MSamples
-
K525
Baseband extension to 1 GHz RF bandwidth
-
K527
Baseband extension from 1 GHz to 2 GHz RF bandwidth
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Adapter Test Port K SMA100B-B120
Qty: 1 -
Software and Manuals on USB
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, B10, B120, B13T, B22, K114, K144, K24, K40, K42, K522, K54, K55, K62, K80, K86
See Configuration Details
-
K86
IEEE 802.11ac
-
B13T
Signal routing and baseband main module, two I/Q paths to RF section,
-
B10
Baseband generator with realtime coder and ARB (64 MSamples)
-
B120
100 kHz to 20 GHz
-
B22
Enhanced phase noise performance and FM/Phim modulator,
-
K114
OFDM Signal Generation
-
K144
5G New Radio
-
K24
Multi function generator
-
K40
GSM/EDGE
-
K42
3GPP FDD
-
K522
Baseband extension to 160MHz RF bandwidth
-
K54
IEEE 802.11a/b/g/n/j/p
-
K55
EUTRA/LTE
-
K62
Additional white Gaussian noise
-
K80
Bit Error Rate Tester
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Adapter Test Port K SMA100B-B120
Qty: 1 -
Software and Manuals on USB
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Rohde & Schwarz SMW200A Spec Sheet
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What frequency range is covered by the R&S SMW200A B120 option?
The R&S SMW200A B120 option provides frequency coverage from 100 kHz to 20 GHz, supporting applications from baseband through microwave frequencies including all major cellular bands, WLAN, radar, and satellite communications. The B120 uses a mechanical step attenuator for consistent performance across the entire frequency range. This single-path configuration is well suited for general-purpose RF testing, component characterization, and receiver measurements.
What is the frequency switching speed of the B120?
The B120 achieves frequency setting times of less than 1.4 ms (typically 1.0 ms) when measured to within 1 x 10^-7 accuracy for frequencies above 200 MHz with GUI updates stopped. In list mode operation, the instrument switches even faster with typical times around 0.8 ms after trigger pulse. The synthesis resolution of 5 microHz nominal in the fundamental frequency range enables precise frequency settings for demanding measurement applications.
Can the SMW200A B120 be configured with a second RF path?
Yes, the B120 in path A can be paired with B203 (3 GHz), B206 (6 GHz), or B220 (20 GHz) in path B for dual-path operation. The B13T or B13XT baseband main module is required to support a second RF path. A dual-path configuration enables simultaneous generation of wanted signal and interferer, TX/RX diversity testing, dual-carrier applications, or independent signal generation for complex test scenarios where each path operates with its own frequency, level, and modulation settings.
What modulation bandwidth capabilities does the B120 support?
With standard baseband configuration (B13 or B13T main module with B10 generator), the B120 supports RF modulation bandwidths up to 160 MHz, adequate for most cellular and WLAN applications. When equipped with wideband baseband (B13XT main module with B9 generator), it achieves up to 2 GHz I/Q modulation bandwidth with exceptional modulation frequency response of less than 0.4 dB measured over the full 2 GHz. This wideband capability supports 5G NR, ultra-wideband applications, and advanced radar signals.
What digital communication standards can be generated with the B120?
The B120 supports comprehensive digital standard generation including 5G New Radio, LTE/LTE-Advanced up to Release 15 with carrier aggregation, NB-IoT, eMTC, 3GPP FDD/HSPA/HSPA+, GSM/EDGE/EDGE Evolution, and WLAN IEEE 802.11a/b/g/n/j/p/ac/ax/ad/be. Standards are configured and generated directly on the instrument through embedded software options without external PC software. Test case wizards streamline base station conformance testing according to 3GPP TS 38.141, 3GPP TS 36.141, and TS 25.141 specifications.
How does the mechanical attenuator in the B120 affect performance?
The B120 uses a mechanical step attenuator which provides excellent repeatability and stability across the 100 kHz to 20 GHz range. While mechanical attenuators have slightly slower switching compared to electronic types (used in 3 to 12.75 GHz options), they offer consistent performance at higher frequencies. Level setting resolution is 0.01 dB, and the attenuator supports the full dynamic range required for receiver testing and component characterization across the entire operating bandwidth.
What is the SSB phase noise performance of the B120?
The B120 exhibits excellent spectral purity with SSB phase noise typically around negative 139 dBc at 1 GHz carrier with 20 kHz offset in standard performance. For enhanced spectral purity, optional enhancements include the B22 option which provides improved phase noise performance along with FM/phase modulation capability. The phase coherence option (B90) is also available for applications such as beamforming that require coherent signal generation across multiple paths.
Does the B120 support MIMO and fading simulation?
Yes, when equipped with optional fading modules (B14 for standard baseband or B15 for wideband baseband), the B120 can simulate realistic channel conditions with multipath fading. With up to four fading modules installed, the system provides up to 32 logical faders supporting MIMO configurations including 2x2, 3x3, 4x4, and higher-order scenarios such as 8x4 and 2x4x4. The internal baseband can provide up to eight independent signal sources, enabling comprehensive MIMO testing, LTE carrier aggregation, and multi-user scenarios in a single instrument.
