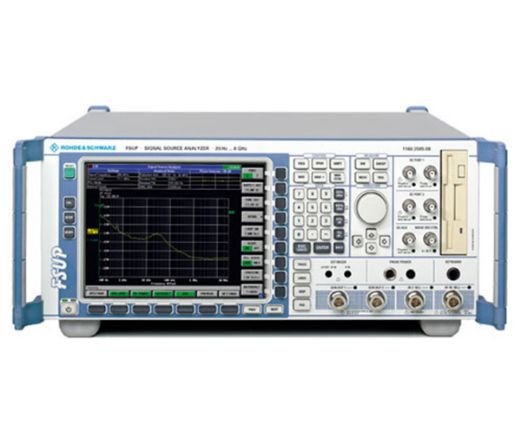

Rohde & Schwarz FSUP8

Enable cost-optimized setups for your development and production needs with the FSUP8.

The Rohde & Schwarz FSUP8 Signal Source Analyzer combines the functionality of a high-end spectrum and signal analyzer with the benefits of a pure phase noise tester, based on the PLL method. This R&S signal source analyzer covers microwave-range frequencies in a single box.

Similar to an FM/PM/AM demodulator, the FSUP8 records the oscillator signal over time, while also characterizing oscillators with respect to tuning slope, transient response, power, harmonics and spurious emissions.

Rohde & Schwarz FSUP8 - Features and Specifications:

• Frequency range of 10 MHz to 8 GHz
• Can be used with external mixers to reach up to 110 GHz
• Transient measurement of 10 mHz (min. frequency offset) and 30 MHz (max. frequency offset)
• Low-noise DC outputs for supply and tuning voltages
• Highly flexible phase noise tester with two DUT method
• Phase noise tester can detect, suppress and list interference
• Frequency Range Power supplies: 2 Tuning ports of -10V to 28V, 20mA
• 2 DC ports: 0 to 12V, 500mA
• 1 Aux port: -10V to 0V, 500mA

Get Rohde & Schwarz FSUP8 Signal Source Analyzers for rent or lease at TRS-RenTelco with 24/7 customer support for your project. Request a quote or contact us for details.
