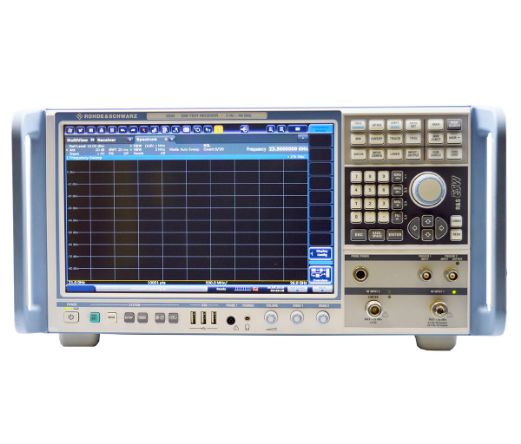

Rohde & Schwarz ESW44
44 GHz EMI Test Receiver, 2.92 mm (m)
Rent or Lease
The Rohde & Schwarz ESW44 is an EMI Test Receiver that offers a frequency range of 2 Hz to 44 GHz. Equipped with FFT-based time domain scan, the ESW44 captures and weights disturbance spectra with efficiency. The ESW44 also comes equipped with spectrogram and real-time spectrum analysis in order to facilitate the detailed analysis of disturbance signals.
Key facts of the R&S ESW44:
- Frequency range 2 Hz to 44 GHz
- Compliant with CISPR16-1-1, ANSIC63.2, MIL-STD-461 and FCC
- Highest dynamic range and highest accuracy for demanding certification measurement
- Ultrafast measurements with FFT-based time domain scan
- Preselection with selectable highpass filters and notch filters for the ISM bands
- EMI test receiver and signal and spectrum analyzer in a single box
- Realtime spectrum analysis (R&S?ESW-K55 option) with 80 MHz bandwidth and spectrogram function
- MultiView function for straightforward display of multiple operating modes on a single screen
You can rent or lease the Rohde & Schwarz ESW44 from TRS-RenTelco with 365 days customer support. Our skilled technicians and metrologists calibrate each product to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant lab. Request a quote now.
