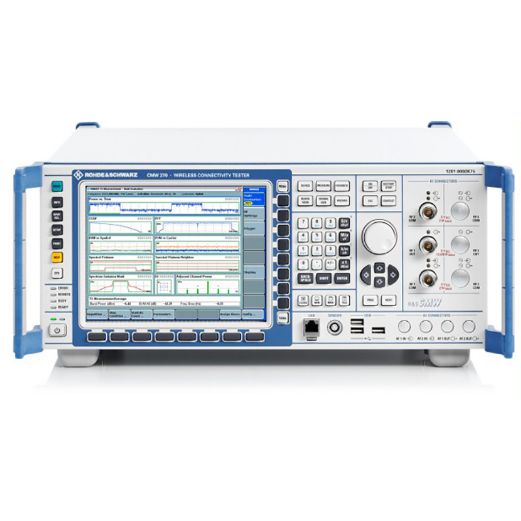

Rohde & Schwarz CMW270
Wideband Radio Communication Tester
The Rohde & Schwarz CMW270 is a wideband radio communication tester for various broadcast technologies. This is the ideal test solution for integrated wireless communications that connect laptops, netbooks, game consoles, data cards, wireless headsets and for the test requirements of various other products of the IoT (Internet of Things) market.
A substitute for the development and production of equipment outside conventional cellular networks, the Rohde & Schwarz CMW270 provides network emulation (signaling mode) for WLAN and Bluetooth as well as generator and analyzer functionality for standards such as WLAN, Bluetooth, GNSS and broadcast technologies.
Rohde & Schwarz CMW270 - Features and Specifications:
- Test automation (including detailed test reports) of RF testing
- General-purpose ARB generator for WLAN, Bluetooth, GNSS and various broadcast technologies
- Up to 6 GHz of continuous frequency range
- Bluetooth RF tester (Basic Rate, Enhanced Data Rate and Low Energy) qualified by the Bluetooth SIG
- Dual tester configuration for concurrent testing of two wireless devices
- Minimum operating costs due to state-of-the-art self-test concept
- RF pre-qualification testing
- Calibration interval - 12 or 24 months
Get the Rohde & Schwarz CMW270 for rent or lease at TRS-RenTelco with 365-day customer support. Contact us to learn more or request a quote today.
- Configurations
- Resources
--, B100H, B400B, B405A, B500I, B570H, B660H, B661H, KD611, KM010, KM656, KM721, KS602, KS603, KS656, KS660, KS670, KS721, KT057, PK364, PK61, PK65, PS275, S052S, S100H, S550N, S570H, S590D, S600D
See Configuration Details
-
B570H
Extra RF Converter
-
B100H
Extra Baseband Measurement Unit Advanced
-
B400B
Audio Analyzer/Generator
-
B405A
Speech Codec
-
B500I
Singaling Unit Advanced For LTE, WCDMA, WIFI, GSM
-
B660H
Option Carrier 10GB
-
B661H
10GB Ethernet Switch,Retrofittable In R&S Service,CMW Module H661H
-
KD611
Bluetooth Le Advertiser Testing, Rx Meas.Up To R4.2
-
KM010
Spectrum Analyzer, Resolution Bandwidth 100 Hz To 10 MHz
-
KM656
WLAN IEEE 802.11AC SISO, Tx Measurement
-
KM721
Bluetooth Le R5 , Tx Measurements
-
KS602
Bluetooth Signaling/Hands Free Audio Profile, Basic Functionality
-
KS603
Bluetooth Signaling/ A2Dp Stereo Profile, Basic Functionality
-
KS656
WLAN IEEE 802.11 AC Signaling, Network Emulation Basic Functionality
-
KS660
WLAN IEEE 802.11A/B/G Signaling/Access Point Emulation, Advanced Functionality
-
KS670
WLAN IEEE 802.11 2x2 MIMO Signaling Access Point Emulation; SU-MIMO generic feature
-
KS721
Bluetooth LE R5 DTM
-
KT057
Wireless Connectivity (WIMAX,WLAN, BT), CMWrun Sequencer Software Tool
-
PK364
6GHz Flat Rate, Enabling Extended Frequency Range 3.3GHz To 6GHz On Up To 4 RF Converters (TRXs)
-
PK61
Bluetooth Call Box Bundle, Including Measurements R&SCMW-KM610/611 And Signaling R&SCMW-KS600/KS610/KS611
-
PK65
WLAN Call Box Bundle, Including Measurements R&SCMW-KM650/651 And Signaling R&SCMW-KS650/651
-
PS275
CMW270 Basic Assembly (Mainframe), 70 MHz To 3.3GHz
-
S052S
Solid State Drive (SSD)
-
S100H
Baseband Measurement Unit Advanced, H100H
-
S550N
Baseband Interconnection, Flexible Link 10GB, For Signaling And IQ Access And Multibox Connection, Not Installable Post Factory,CMW Module H550N
-
S570H
RF Converter (TRX), RF Bandwidth 160 MHz
-
S590D
RF Frontend, Advanced Functionality, Not Installable Post Factory
-
S600D
CMW270 Frontpanel With Display/Keypad, Not Installable Post Factory
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, B450I, B500I, B660H, B661H, KB036, KM656, KM657, KS656, KS657, KT057, KT910, PK45, PK65, PS275, S052S, S100H, S550N, S570H, S590D, S600D
See Configuration Details
-
B450I
Data Application Unit
-
B500I
Singaling Unit Advanced For LTE, WCDMA, WIFI, GSM
-
B660H
Option Carrier 10GB
-
B661H
10GB Ethernet Switch,Retrofittable In R&S Service,CMW Module H661H
-
KB036
Extended Frequency Range, 3.3 GHz To 6 GHz, Per RF Converter
-
KM656
WLAN IEEE 802.11AC SISO, Tx Measurement
-
KM657
WLAN IEEE 802.11AX SISO Tx Measurements
-
KS656
WLAN IEEE 802.11 AC Signaling, Network Emulation Basic Functionality
-
KS657
WLAN IEEE 802.11AX Signaling, Network Emulation For Testing WLAN Stations
-
KT057
Wireless Connectivity (WIMAX,WLAN, BT), CMWrun Sequencer Software Tool
-
KT910
CMWrun Sequencer Software Tool, BroaDCom Library 1
-
PK45
Application Testing / IMS Bundle, Including : IP Data Interface R&SCMW-KA100/150, Measurements R&SCMW-KM050/051, IMS Services R&SCMW-KAA20 And EPDG -KA065
-
PK65
WLAN Call Box Bundle, Including Measurements R&SCMW-KM650/651 And Signaling R&SCMW-KS650/651
-
PS275
CMW270 Basic Assembly (Mainframe), 70 MHz To 3.3GHz
-
S052S
Solid State Drive (SSD)
-
S100H
Baseband Measurement Unit Advanced, H100H
-
S550N
Baseband Interconnection, Flexible Link 10GB, For Signaling And IQ Access And Multibox Connection, Not Installable Post Factory,CMW Module H550N
-
S570H
RF Converter (TRX), RF Bandwidth 160 MHz
-
S590D
RF Frontend, Advanced Functionality, Not Installable Post Factory
-
S600D
CMW270 Frontpanel With Display/Keypad, Not Installable Post Factory
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Rohde & Schwarz CMW270 Spec Sheet
