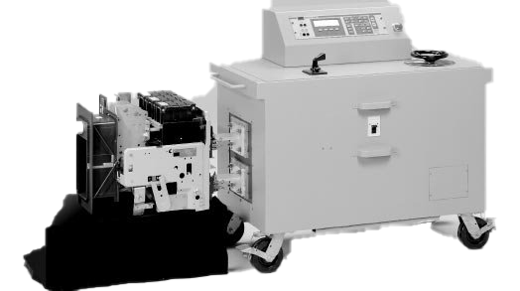

Megger DDA-6000
Circuit Breaker Test Set
The Megger DDA-6000 is a universal circuit breaker test set which offers the latest in digital data acquisition instrumentation and control systems. The DDA-6000 is designed specifically to test low-voltage power and molded-case circuit breakers equipped with thermal, magnetic or solid-state trip devices. The unique transformer and circuit design results in a very high-capacity test set in a very compact size. Advanced digital control and instrumentation provides exact testing capacity. The test sets can also be used for other high current applications, such as verifying the ratio of current transformers and performing heat runs or primary injection testing of high-voltage breakers and their associated protective relays. Input Voltage: 460 V, single-phase. Maximum Instantaneous Output Current: 60,000 A.
The top features of the Megger DDA-6000 circuit breaker test set are:
- Model DDA-1 Digital Data Acquisition Instrumentation and Control System
- High-current output: 60,000 A for Model DDA 6000
- Digital signal processing (DSP) technology
- Variable pulse time and firing angle output current control
- Compliant with NEMA AB-4 test guidelines
Acquire the Megger DDA-6000 for rent or lease with 24/7 customer support. Request a quote today.
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Leads Test
Qty: 1 -
Ground Lead 8 awg 12 in
Qty: 1 -
Washer 1/2 in
Qty: 8 -
Lock Washer 1/2 in
Qty: 8 -
Nut 1/2 in
Qty: 8 -
Manual Instruction
Qty: 1 -
Lead Input
Qty: 2 -
Ground Cable
Qty: 1 -
Adapter STAB Horizontal Standard Thin
Qty: 2 -
Adapter STAB
Qty: 2 -
STAB Series Bar Z-Shaped
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Megger DDA-6000 Spec Sheet
