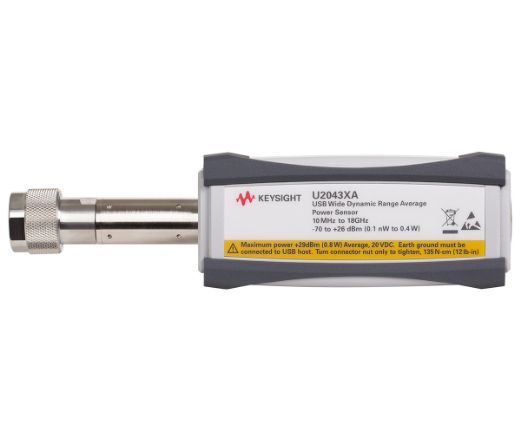

Keysight Technologies U2043XA
18 GHz USB Wide Dynamic Range Average Power Sensor (-70 to + 26 dBm)
Accurately measure any modulated signal with the Keysight U2043XA X-Series wide dynamic range power sensors. The USB connectivity models comes with world's widest dynamic range, covering -70 to 26 dBm. This sensor offers very accurate and repeatable power measurements for any modulated signal and comes with super-fast measurement speed of 50,000 readings/sec, which enables higher manufacturing throughput. Users can also save time and reduce measurement uncertainty with the internal zero and calibration function. The U2043XA is supported by the Keysight BenchVue software.
BenchVue makes it easy to control your power meter to log data and visualize measurements in a wide array of display options without any programming. Simply connect the sensor to your PC installed BenchVue BV0007B Power Meter/Sensor Control and Analysis app to perform average power measurement and analysis.
Keysight U2043XA Key Features and Specifications:
- Wide dynamic range (-70 to 26 dBm) for small signal measurements
- Super-fast and real time measurement of 50,000 readings/sec
- Real-time measurement with zero dead time to ensure every single continuous pulse is measured
- Average mode time-selectivity function allows full dynamic range for average and time selectivity average power measurements
- Internal zero and automatic calibration saves time and reduces measurement uncertainty
- Easy measurement start-up with new intuitive BenchVue software
The Keysight, formerly Agilent, U2043XA is available for rent or lease at TRS-RenTelco. Our experienced team of metrologists and technicians calibrate each product to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. Contact us and request a quote today.
- Configurations
- Resources
--, 100
See Configuration Details
-
100
Type-N (male) connector
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cable Main Assembly
Qty: 1 -
Cable Trigger
Qty: 2 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies U204xXA Spec Sheet
