Keysight Technologies N9040B-550
50 GHz UXA Signal Analyzer, 2.4 mm (m)
Rent or Lease
Keysight Technologies N9040B-550

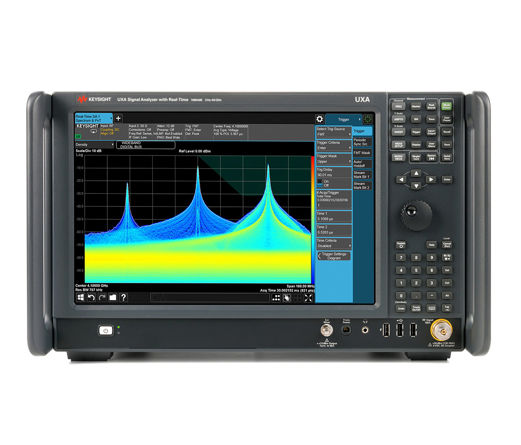

The Keysight Technologies N9040B-550 is a Multi-touch, 3 Hz to 50 GHz UXA Signal Analyzer.
N9040B-550 Product Highlights
- See the real performance of your design with wider (to 1 GHz), deeper views of the most challenging signals
- Measure the spectral purity of your design with industry-leading phase noise and 78 dBc spurious-free dynamic range across 510 MHz bandwidth
- Extend RF input frequency up to 110 GHz with Keysight smart mixers; to THz with 3rd party solutions
- Capture intermittent signals with gap-free real-time spectrum analysis
- Capture lower-level spurious signals with an improved DANL low noise path
Keysight & TRS-RenTelco
TRS-RenTelco is a proud partner of Keysight Technologies and offers a wide range of rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry. Our close relationship with Keysight Technologies allows us to ensure we have the right Spectrum Analyzer solution for your job.
Renting a Spectrum Analyzer
With TRS-RenTelco renting a Spectrum Analyzer equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 4,400 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.
