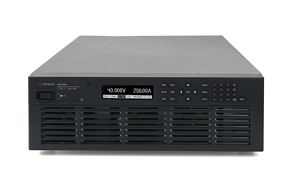

Keysight Technologies N8923A
500 V, 30 A, 5000 W, 208 VAC DC Power Supply
Achieve exceptionally high power for all your automated test equipment (ATE) systems applications with the Keysight (formerly Agilent) N8923A high-power DC power supply.
The N8923A is a single-output autoranging power supply that delivers cost-effective, superior performance with unparalleled flexibility. This Keysight power supply's autoranging capability offers a wide range of voltage and current combinations at full power.
Multiple units of the Keysight N8923A can be connected in parallel to create one power supply with more than 100kW of power.
Keysight N8923A Features and Specifications:
- Voltage: 500V
- Current: 30A
- Power: 5,000W
- Output voltage ripple and noise:
- CV p-p: 350mV
- CV rms: 70mV - Load effect (change from 0 to 100 percent of full load):
- Voltage: 250mV
- Current: 45mA - Programming accuracy (23 degrees C 5 degrees C):
- Voltage: < 500mV
- Current: < 60mA - Measurement accuracy (23 degrees C 5 degrees C):
- Voltage: < 500mV
- Current: < 60mA - Load transient recovery time: < 1.5ms
- Output response time:
- Up, full load: < 30ms
- Down, full load: < 80ms
The Keysight (formerly Agilent) N8923A high-power DC power supply is available for rent or lease at TRS-RenTelco with 24/7 support. To learn more or to get a quote, call us at 800.874.7123.
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Connector Plug for Sense Terminals
Qty: 1 -
Connector Plug for Sense Terminals
Qty: 1 -
Cover Safety for DC Output
Qty: 1 -
Hardware DC Terminal Connection
Qty: 2 -
Special AC Fixing Angle for N89xx Series
Qty: 1 -
Cap Nut M3
Qty: 4 -
Washer M3
Qty: 4 -
Terminal Block 4-Wire Special AC Plug 208 V 3-Phase Green
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies N8923A Spec Sheet
