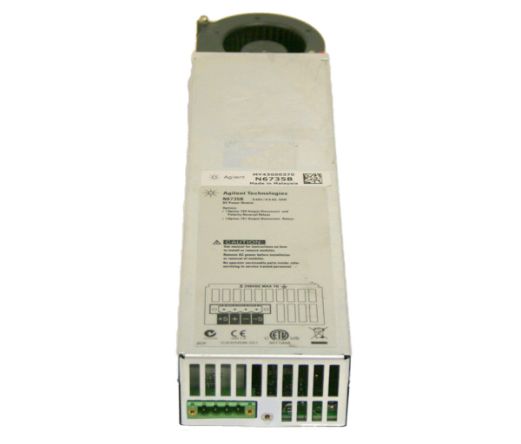

Keysight Technologies N6735B
60V, 0.8A, 50W N6735B DC Power Module,
Key Specifications: Output Ratings * Voltage: 60 V * Current (derated 1% per C above 40C): 0.8 A / 1.6 A * Power: 50 W / 100 W Programming Accuracy (at 23C /-5C after 30 minute warm-up. Applies from min. to max. program) * Voltage: 0.1% 60 mV * Current: 0.15% 20 mA Ripple & Noise from 20 Hz to 20 MHz * CV peak-to-peak: 25 mV * CV rms: 9 mV * (PARD) CC rms: 2 mA Load Effect (Regulation) (for any output load change, with a maximum load-lead drop of 1 V per lead) * Voltage: 13 mV / 16 mV * Current: 2 mA
Read More
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Jumper Assembly
Qty: 2 -
Connector Plug 4-Position
Qty: 1 -
Screw M3 x 0.5 6 mm TORX #10
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies N6735B Manual
Keysight Technologies N6735B Spec Sheet
