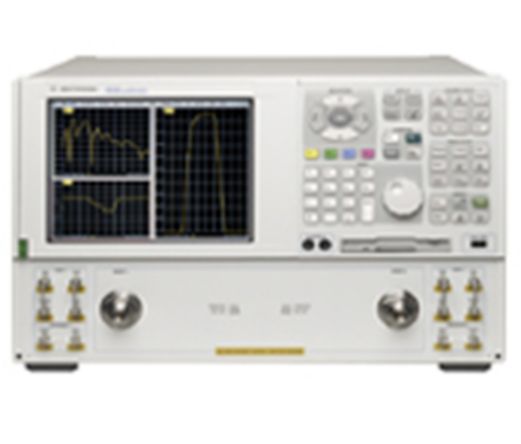

Keysight Technologies N5230A-145
4-port, 13.5 GHz PNA-L Network Analyzer, 3.5 mm (m)
The Keysight (formerly Agilent) N5230A-145 Vector Network Analyzer is a member of the PNA series network analyzer platform and is designed for your general-purpose network analysis needs. Advanced features help you work quickly, easily, and accurately. With the same firmware as the PNA, the PNA-L offers the perfect balance of value and performance. PNA-L provides efficiency and flexibility in both manufacturing and R&D applications for industries from wireless LAN components to aerospace and defense.
Key Specifications of the Keysight N5230A-145:
- Frequency range: 300 kHz to 13.5 GHz
- Dynamic range: 103 dB
- Trace noise: Less than 0.004 dB
- 32 channels
- 4.5 usec/point measurement speed
- Automatic port extension automatically corrects for in-fixture measurements
TRS-RenTelco offers the Keysight (formerly Agilent) N5230A-145 Vector Network Analyzer for rent or lease with 24/7 customer support. Our experienced team of metrologists and technicians calibrate each product to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. Contact us and request a quote today.
- Configurations
- Resources
--, 145
See Configuration Details
-
145
300 Khz To 13.5 Ghz 4 Port, Configurable Test Set And Extended Power Range
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Wrench Torque 8 in/lb 20 mm Open End
Qty: 1 -
Cable RF Front-Rear Panel Jumper SMA(m) - SMA(m)
Qty: 9 -
Handle Kit 6-Hole
Qty: 1 -
Keyboard USB
Qty: 1 -
Mouse Optical
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies PNA-L Spec Sheet
