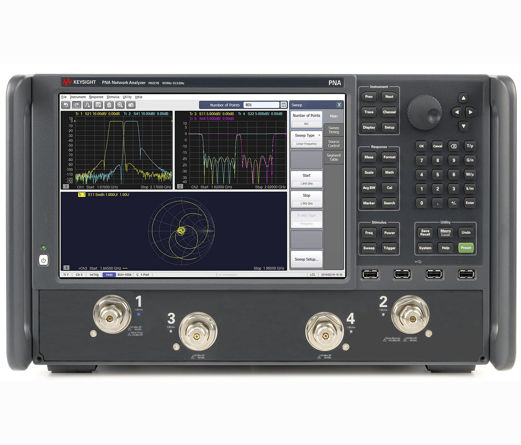

Keysight Technologies N5227B-200
2-port, 10 MHz - 67 GHz PNA Network Analyzer, 1.85 mm (m)
Rent or Lease
Use the Keysight (formerly Agilent) N5227B-200 PNA network analyzer to measure S-paramerters confidently and with the highest stability. The N5227B-200 is the best-performing microwave network analyzer in the industry and is the perfect solution for your toughest measurement challenges and requirements.
Characterize active components and get quick, accurate insights into component behavior with the Keysight N5227B network analyzer's multi-touch display and intuitive user interface.
Keysight N5227B-200 Features and Specifications:
- Two-port base model with standard test set
- Maximum frequency: 67GHz
- Nominal (preset) power: 0 dBm
- Minimum settable power: -30 dBm (typical)
- Damage input level: 27 dBm, 40 V
- Input frequency: 10MHz 10 ppm
- Input level: -15 dBm to 20 dBm
- Input impedance: 200 ohmes, nominal
- Output frequency: 10MHz 1 ppm
- Output level: 10 dBm 4 dB into 50 ohmes
- Output impedance: 50 ohmes, nominal
The Keysight (formerly Agilent) N5227B-200 two-port, 67GHz PNA network analyzer is available for rent or lease at TRS-RenTelco with 24/7 support. Contact us at 800-874-7123 for more information.
- Configurations
- Resources
- FAQsAI
--, 200, SYNV7
See Configuration Details
-
200
2-port, base hardware configuration
-
SYNV7
Synthesizer, Version 7.0
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Wrench Torque 8 in/lb 20 mm Open End
Qty: 1 -
Cover Impact Rear Phantom Gray
Qty: 1 -
Cover Front Impact Gray
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
Handle Front Die Cast Gray
Qty: 1 -
50 ohm SMA Terminator, male
Qty: 2
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 200
See Configuration Details
-
200
2-port, base hardware configuration
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Handle Front Die Cast Gray
Qty: 1 -
Wrench Torque 8 in/lb 20 mm Open End
Qty: 1 -
Cover Front Impact Gray
Qty: 1 -
Cover Impact Rear Phantom Gray
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
50 ohm SMA Terminator, male
Qty: 2
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies PNA Configuration Guide
Keysight Technologies PNA Configuration Guide
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What is the Keysight N5227B PNA Network Analyzer?
The Keysight N5227B is a 2-port and 4-port PNA microwave network analyzer covering a frequency range of 10 MHz to 67 GHz (with typical performance extending to 70 GHz). It is designed for high-performance S-parameter measurements and is part of the Keysight PNA Series, featuring 1.85 mm (male) test port connectors and a 12.1-inch LCD touch screen display.
What is the frequency range of the Keysight N5227B Option 200?
The N5227B Option 200 is the 2-port base model with a standard test set, covering a specified frequency range of 10 MHz to 67 GHz with 1 Hz frequency resolution. With the optional low frequency extension (Option 205), the range can be extended down to 900 Hz (500 Hz typical).
What system dynamic range does the N5227B Option 200 provide?
The N5227B Option 200 delivers a specified system dynamic range of up to 128 dB (at 13.5 GHz to 16 GHz band) at 10 Hz IF bandwidth. Typical system dynamic range reaches up to 140 dB in the 13.5 GHz to 16 GHz range, making it suitable for highly demanding measurements of low-loss and high-isolation devices.
What types of measurements can the N5227B PNA perform?
The N5227B PNA supports full S-parameter measurements including reflection, transmission, group delay, and dynamic accuracy characterization. It is compatible with a wide range of application software including time domain analysis, gain-compression measurements, scalar and vector mixer/converter measurements, spectrum analysis, pulsed-RF measurements, and noise figure measurements.
What calibration options are available for the N5227B?
The N5227B supports calibration using the 85058B mechanical calibration kit and the N4694A 2-port electronic calibration (ECal) module. Corrected directivity reaches up to 47 dB with the ECal module. Keysight also provides a free Uncertainty Calculator to generate correction curves for your specific calibration kit and PNA setup.
What are the test port output power specifications of the N5227B?
The N5227B Option 200 provides a maximum specified leveled output power of +13 dBm from 50 MHz to 2 GHz, decreasing to +11 dBm at higher frequencies up to 67 GHz. Power level accuracy is typically within +/- 0.4 dB from 10 MHz to 1 GHz, and power level resolution is available across the full frequency range.
What makes the N5227B Option 200 two-port configuration unique?
The N5227B Option 200 is the 2-port base model with a standard test set, providing essential S-parameter measurement capability up to 67 GHz without front-panel jumpers. For users needing more flexibility, upgrade paths include Option 201 (adds front-panel jumpers and R1 receiver switch), Option 205 (adds low frequency extension to 900 Hz), and Option 219 (adds attenuators and bias-tees).
What applications is the N5227B well suited for when renting?
Renting the N5227B is ideal for projects requiring high-frequency characterization of passive components, connectors, cables, filters, and active devices operating in the millimeter-wave range up to 67 GHz. It is also used as the measurement engine in millimeter-wave VNA systems (N5290A/N5291A) when paired with frequency extenders, enabling measurements up to 110 GHz or 120 GHz.
