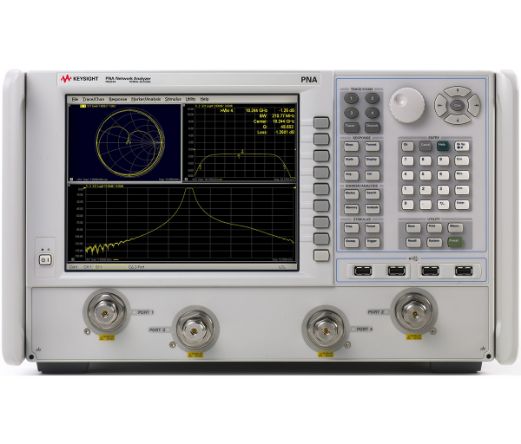

Keysight Technologies N5224A-200
2-port, 10 MHz - 43.5 GHz PNA Network Analyzer, 2.4 mm (m)
Product Overview
The Keysight (formerly Agilent) N5224A-200 falls under the brand's acclaimed PNA series of network analyzers. This series is well known for its performance, reliability, and advanced applications for analysis and measurement. The Keysight N5224A-200 comes equipped with a host of features which make it one of the most sought after network analyzers out there today.
Key Features of the N5224A-200:
- Maximum Frequency: 43.5 GHz
- Dynamic Range: 127 dB
- Output Power: 13 dBm
- Trace Noise: 0.002 dBrms
- Number of Built-In Ports: 2
- Harmonics: -21 dBc
- Noise Floor: -114 dBm
Applications
- S-Parameters
- Materials
- Balance Measurements
- Pulsed RF
Components
- Antennas
- Mixers/Frequency Converters
- Amplifiers
The Keysight (formerly Agilent) N5224A-200 packs quite a punch, and here at TRS-RenTelco we have this 2-port, 43.5 GHz PNA Network Analyzer available for both rent and lease. So, if you want this advanced test device to be a temporary or permanent part of your test equipment set, get in touch and request a quote today.
- Configurations
- Resources
--, 200
See Configuration Details
-
200
2 Port, Base Hardware Configuration
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Termination 50 Ohm SMA
Qty: 2 -
Wrench Torque 8 in/lb 20 mm Open End
Qty: 1 -
Handle Kit 6-Hole
Qty: 1 -
Power cord Right Angle
Qty: 1 -
Keyboard USB
Qty: 1 -
Mouse Optical
Qty: 1 -
Cover Front
Qty: 1 -
Cover Rear
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
