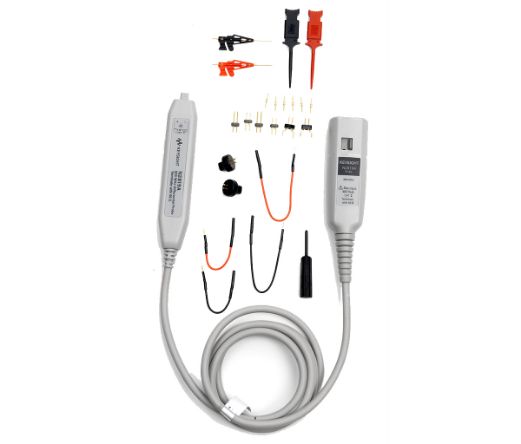

Keysight Technologies N2819A
800 MHz with AutoProbe Differential probe -
The N2793A differential probe provides superior high-speed differential signal measurements required for today's high-speed power measurements, vehicle bus measurements and high-speed digital system designs. The N2793A differential probes offer 10:1 attenuation setting, allowing them to be used for a broad range of applications. The probe comes with a variety of probe tip accessories for use with large and small components in tight places. The probe also comes with a DC blocking capacitor to block out unwanted DC components of the input signal.
The differential probes have an input resistance of 200 k? and low input capacitance of 1 pF to minimize circuit loading. The N2819A probe is compatible with select InfiniiVision and Infiniium oscilloscope with 50 ? AutoProbe interface input. The probe is powered directly by the InfiniiVision and Infiniium AutoProbe interface. For use with non-AutoProbe input oscilloscope, use the N2793A
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Case Hard Plastic for Accessories
Qty: 1 -
Signal Pin 0.8 mm (Set Of 6)
Qty: 1 -
Micro IC clip Black
Qty: 1 -
Micro IC clip Red
Qty: 1 -
Lead Extension 0.8 mm J-P 10 cm Black
Qty: 1 -
Lead Extension 0.8 mm J-P 10 cm Red
Qty: 1 -
Pincher Clip Red
Qty: 1 -
Pincher Clip Black
Qty: 1 -
Dual Signal Pin 12.8 mm
Qty: 2 -
Dual Signal Pin 16.8 mm
Qty: 2 -
Lead Extension 0.8 mm J-P 5 cm Black
Qty: 1 -
Lead Extension 0.8 mm J-P 5 cm Red
Qty: 1 -
Adjustment Tool
Qty: 1 -
Case Hard Plastic
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies N2819A Spec Sheet
