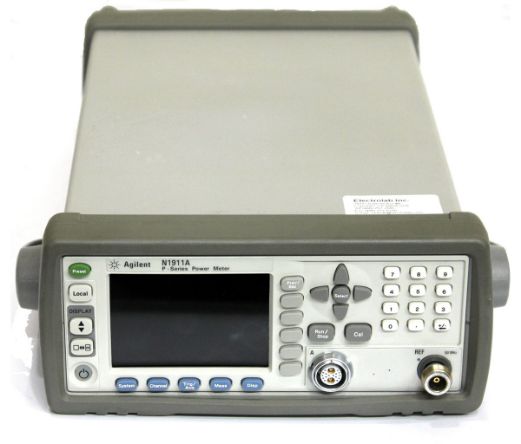

The Keysight N1911A is a single channel wideband power meter that provides precise and repeatable power measurements. Used by R&D and manufacturing engineers, the N1911A is employed in the aerospace and defense (radar), wireless communications and wireless 802.11a/b/g networking industries.
Besides statistical data measurement of wideband signals (up to 30 MHz video bandwidth) with 100 M samples per second continuous sampling, measurements provided by the Keysight N1911A meter/sensor combination include:
- Peak power
- Average power
- Peak-to-average ratio
- Rise time
- Fall time
- Maximum power
- Minimum power
The Keysight N1911A delivers a measurement frequency range from 50 MHz to 40 GHz with an internal zero and calibration capability, when used with the N192XA wideband power sensors.
Keysight N1911A - Key Features and Specifications:
- Video bandwidth of 30 MHz
- USB, LAN and GPIB standard connectivity
- 100 Msample/s per second single shot real time capture
- Single screen view for pulse measurement analysis
- E932x power sensor compatible
- Internal Zeroing and Calibration while connecting to the DUT
- BenchVue software enabled
- LXI-C Compliant
- Calibration cycle - 2 years
The Keysight N1911A is available for lease or lease from TRS-RenTelco with 24/7 customer support. Contact us and request a quote today.
