Keysight Technologies M8196A
Arbitrary Waveform Generator, 2 Channels, 92GSa/s
Keysight Technologies - M8196A

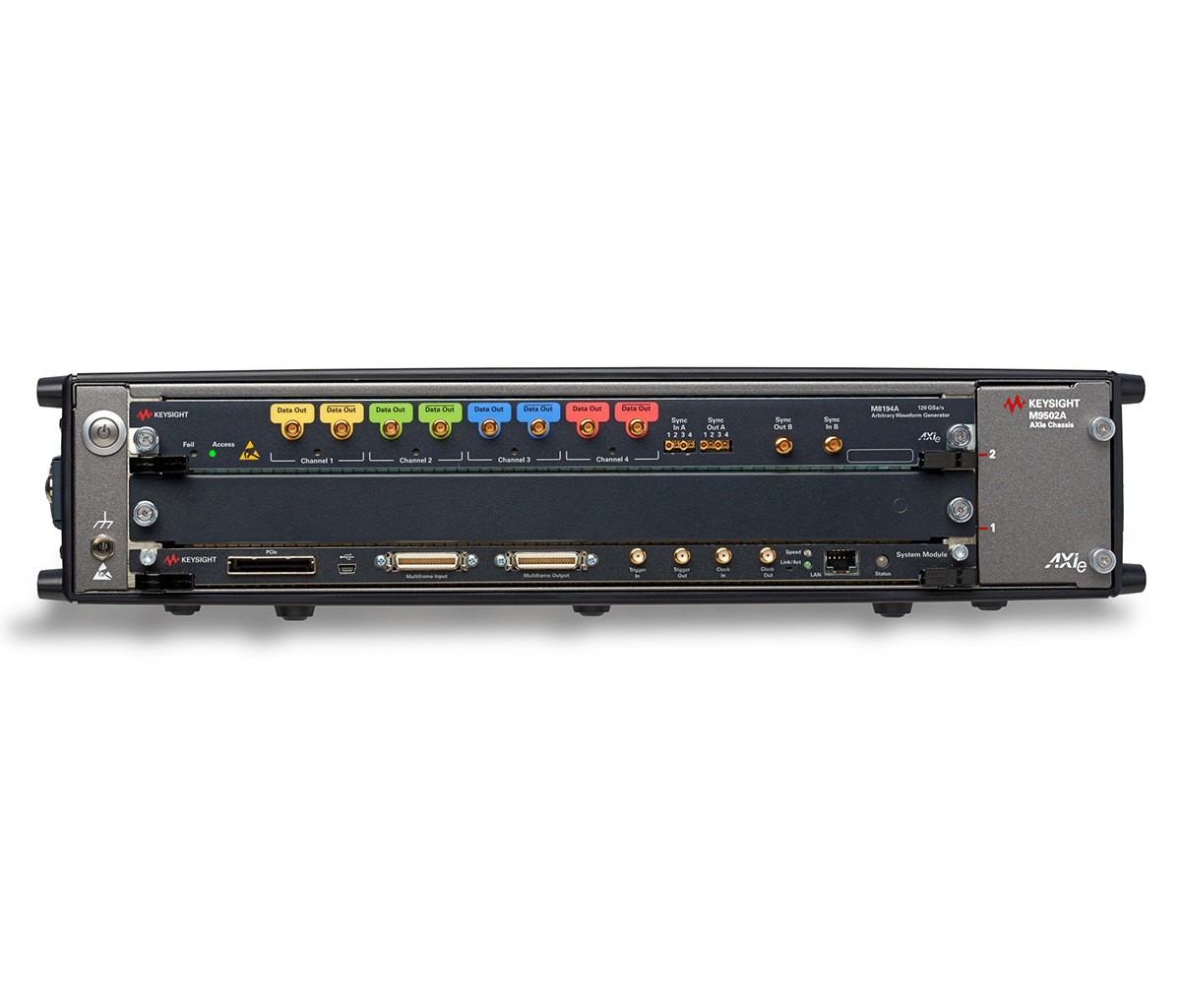

The Keysight Technologies, Inc. M8196A arbitrary waveform generator (AWG) has the highest sample rate and the widest bandwidth in its class with up to four synchronized channels operating simultaneously on one module.
M8196A Product Highlights
• Sample rate up to 92 GSa/s (on up to 4 channels simultaneously)
• Analog bandwidth: 32 GHz (typical)
• 8 bits vertical resolution
• – 512 kSa of waveform memory per channel
• 1, 2, or 4 differential channels per 1-slot AXIe module (number of channels is software upgradeable)
• Amplitude up to 1 Vpp(se) (2 Vpp(diff.)), voltage window –1.0 to +2.5 V
• trise/fall (20%/80%) < 9 ps (typical)
• Ultra-low intrinsic jitter
• Built-in frequency and phase response calibration for clean output signals
Keysight Technologies & TRS-RenTelco
TRS-RenTelco is a proud partner of Keysight Technologies and offers a wide range of rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry. Our close relationship with Keysight Technologies allows us to ensure we have the right Generators solution for your job.
Renting Generators
With TRS-RenTelco, renting Generators equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 5000 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.
Links to Additional Information
Keysight Technologies Products from TRS-RenTelco
- Configurations
- Resources
--, 002
See Configuration Details
-
002
Arbitrary Waveform Generator, 2 Channels, 92 GSa/s
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cable USB-A - USB-MiniB
Qty: 1 -
Load Fixed 2.4 mm(m)
Qty: 2 -
USB Software I/O Libraries
Qty: 1 -
SOFTWARE & MANUALS ON USB
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 004
See Configuration Details
-
004
Arbitrary Waveform Generator, 4 Channels, 92 GSa/s
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Load Fixed 2.4 mm(m)
Qty: 4 -
Cable USB-A - USB-MiniB
Qty: 1 -
USB Software I/O Libraries
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 001
*This item has already been added to your cart. Check your cart for quantity and availability.
92 GSa/s Arbitrary Waveform Generator - Superior Signal Quality
Keysight Technologies M8196A Spec Sheet
