Keysight Technologies E8486A-200
60 GHz - 90 GHz Waveguide Power Sensor, -60 dBm to +20 dBm

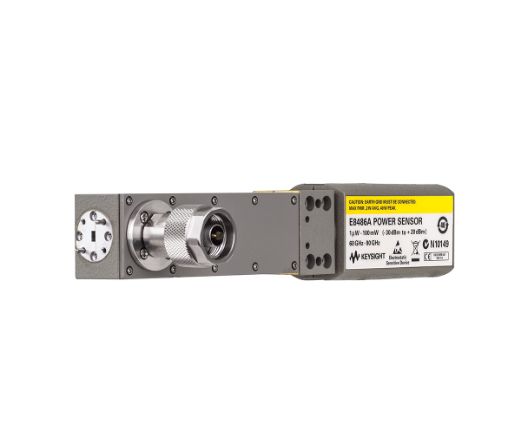

The Keysight E8486A-200 waveguide power sensor makes precise and direct waveguide measurements in the E-band frequency range and is compatible with most Keysight power meters.
To minimize any measurement uncertainty caused by mismatch in RF and microwave power measurements, the Keysight E8486A-200 offers excellent SWR of 1.06 (> 30 dB return loss). With a 50 MHz calibration port for easy calibration with the power meter the E8486A-200 eliminates the variance in making measurements with different meter/sensor combinations and the uncertainties due to changes in temperature.
The Keysight E8486A-200 makes accurate and reliable measurements in the 50 to 110 GHz frequency range with high reliability and low loss.
Keysight E8486A-200 - Features and Specifications:
- Frequency: 60 to 90 GHz
- Wide dynamic range spanning from ?60 to 20 dBm
- Covers the V-band, E-band and W-band spectrums
- Compatible with Keysight EPM (E4418B/19B, N1913A/14A), EPM-P (E4416A/17A) and P-Series (N1911A/12A) power meters
- Best SWR available
- 50 MHz calibration port
- High reliability
- Uses the proven Modified Barrier Integrated Diode (MBID) technology
Buy or rent the Keysight E8486A-200 from TRS-RenTelco with 24/7 customer support.
Contact us to learn more or request a quote today.
- Configurations
- Resources
--, 200
See Configuration Details
-
200
Waveguide Power Sensor, 60 to 90 GHz , -60dBm to +20 dBm
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Screwdriver Ball Allen Wrench 3/32 in
Qty: 1 -
Screw for Waveguide
Qty: 4 -
Manual User and Service
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies Waveguide Power Sensors
Keysight E8486A-200 Waveguide Power Sensor Data Sheet
