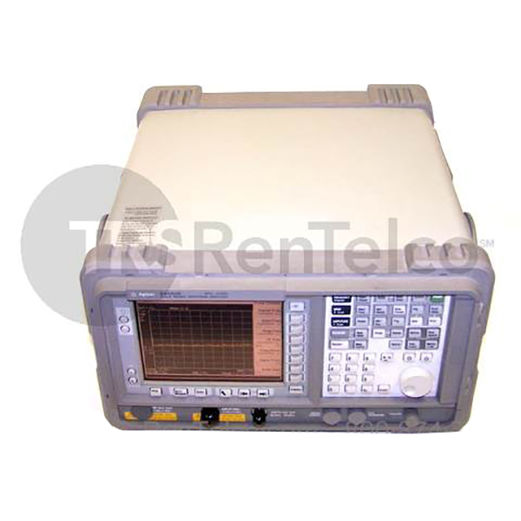

Keysight Technologies E4402B
3 GHz Portable Spectrum Analyzer, Type N (f)
The Keysight (formerly Agilent) ESA-E Series E4402B is our mid-performance spectrum analyzer solution for the future. The series sets the performance standards in measurement speed, dynamic range, accuracy, and resolving power for similarly priced products. Its flexible platform design enables R&D, manufacturing, and field service engineers to customize the product to meet specific testing needs and to upgrade the product with new features when required.
The Keysight, (formerly Agilent) E4402B Spectrum Analyzer's selection of one button measurement solutions combined with its easily navigable user interface and performance in speed allows engineers to spend less time testing and more time designing, building, and troubleshooting components and products.
Here are the key features and specifications of the Keysight (formerly Agilent) E4402B:
Performance:
- 0.4 dB overall amplitude accuracy
- 16 dBm TOI
- -166 dBm DANL, with internal preamp
- 1 Hz narrow resolution bandwidth (optional)
Measurement Applications:
- Phase Noise, Noise Figure, GSM/EDGE and more measurement applications
- PowerSuite one-button power measurements included as standard
Features:
- 10 MHz analysis bandwidth
- Segmented sweep for up to 32 discontinuous spans in one sweep
- Rugged and portable for lab grade performance in the field
- 5 minute warm-up to guaranteed measurement accuracy
Request a quote to rent or lease the Keysight (formerly Agilent) E4402B today from TRS-RenTelco.
- Configurations
- Resources
1AX, 1D5, 1DR, 1DS, A5D, UK9
See Configuration Details
-
1AX
RS232 & Centronics
-
1D5
High Stability Timebase
-
1DR
Narrow Resolution Bandwidth
-
1DS
Preamp
-
A5D
12 V Auto Adapter
-
UK9
Front Cover
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cable BNC(m) - BNC(m) 12 in
Qty: 1 -
Adapter N(m) - BNC(f)
Qty: 1 -
Cover Front Impact
Qty: 1 -
Receptacle Cable Assembly 2-Wire 12 VDC
Qty: 1 -
Cable Extension 2-Wire 12 VDC
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1D5, 1DN, 1DS, A4H, AYX, BAA
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1D5, 1DN, 1DR, 1DS, A4H, AYX, BAA
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1D5, 1DR, 1DS, A4H, UK9
*This item has already been added to your cart. Check your cart for quantity and availability.
1D5, 1DR, 1DS, A4H, UK9
*This item has already been added to your cart. Check your cart for quantity and availability.
1D5, 1DR, 1DS, A4H, AYX, UK9
*This item has already been added to your cart. Check your cart for quantity and availability.
1D5, 1DR, 1DS, A4H, AYX, UK9
*This item has already been added to your cart. Check your cart for quantity and availability.
A4H, UK9
*This item has already been added to your cart. Check your cart for quantity and availability.
A4H, UK9
*This item has already been added to your cart. Check your cart for quantity and availability.
1D5, 1D6, 1DR, 1DS, A4H, AYX, BAA, UK9
*This item has already been added to your cart. Check your cart for quantity and availability.
1D5, 1DR, 1DS, A4J, AYX, UK9
*This item has already been added to your cart. Check your cart for quantity and availability.
120, 1D5, 1DR, 1DS, A4H, UK9
*This item has already been added to your cart. Check your cart for quantity and availability.
226, 229, B74, BAH
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1D6, 226, 229, A4H, B75, B7D, B7E, BAH
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1DR, 1DS, A4H, AYX, BAA
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1DN, 1DR, 1DS, A4H, AYX, BAA
*This item has already been added to your cart. Check your cart for quantity and availability.
120, 1D5, 1DR, 1DS, 226, A4H, UK9
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1DN, A4H, AYX, BAA
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1D5, 1DR, 1DS, 226, A4H, UK9
*This item has already been added to your cart. Check your cart for quantity and availability.
1DR, 1DS, A4H, UK9
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1DN, 1DR, 1DS, A4H, AYX, BAA
*This item has already been added to your cart. Check your cart for quantity and availability.
106, 1D5, 1D6, 1DR, 1DS, A4H, A4J, B7D, B7E
*This item has already been added to your cart. Check your cart for quantity and availability.
*, 1DN, A4H, AYQ
*This item has already been added to your cart. Check your cart for quantity and availability.
1DR , A4H, UK9
*This item has already been added to your cart. Check your cart for quantity and availability.
1DN, 1DS, 226, A4H, AYX, BAA
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1D5, 1D6, 1DN, 1DR, 1DS, A4H, AYX, BAA
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1D5, 1DN, 1DR, 1DS, A4H, AYX, BAA
*This item has already been added to your cart. Check your cart for quantity and availability.
---, 1D5, 1D6, 1DR, 1DS, A4H, AYX
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1DR, A4H, UK9, UKB
*This item has already been added to your cart. Check your cart for quantity and availability.
1AX, 1D5, 1D6, 1DN, 1DR, 1DS, AYX, BAA, UK9
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cable DB 9(f) - DB 9(f)
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
1AX, 1D5, 1DR, 1DS, 226, A5D, UK9
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cable DB 9(f) - DB 9(f)
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
1AX, 1D5, 1DR, 1DS, A5D, UK9
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cable DB 9(f) - DB 9(f)
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies E4402B Manual
Keysight Technologies E4402B Spec Sheet
