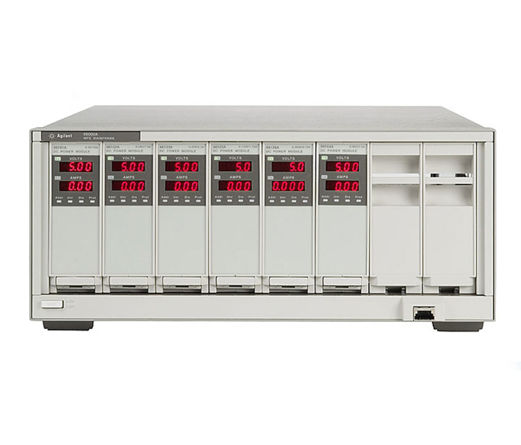

Keysight Technologies 66103A
35V/4.5A/150W DC Power Module
Key Specifications: Output Ratings at 40C * Output voltage: 0 to 35 V * Output current: 0 to 4.5 A * Maximum power: 150 W Programming Accuracy at 25C /-5C * Voltage 0.03% 13 mV * Current 0.03% 2 mA Ripple & Noise (20 Hz to 20 MHz) * Constant Voltage rms: 5 mV * Peak-to-Peak: 10 mV * Constant Current rms: 2 mA Readback Accuracy (via GPIB or keyboard display at 25C /-5C) * Voltage 0.02% 8 mV * Current 0.02% 2 mA
Read More
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Assembly Output Connector
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies 66103A Manual
Keysight Technologies 66103A Spec Sheet
