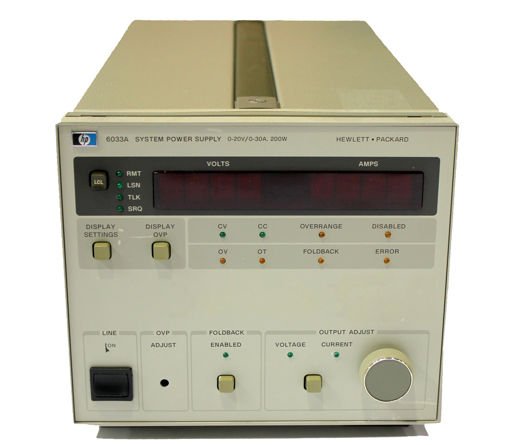

Keysight Technologies 6033A
20V/30A/200W DC Power Supply
Create complex sequences, achieve high-performance power supply, and generate cleaner power signals with the Keysight (formerly Agilent) 6033A DC power supply. The Keysight 6033A has auto-ranging outputs that provide maximum power at various operating voltages. It also provides analog/resistance control of output voltage and current, as well as series and auto-parallel connections of multiple supplies.
Keysight 6033A Features and Specifications:
- Output voltage rating: 0 to 20V
- Output current rating: 0 to 30 A
- Maximum power: 240W Programming Accuracy at 25 degrees C plus/-5 degrees C
- Voltage: 0.035%, 9 mV
- Current: 0.15%, 20 mA Ripple and Noise 20Hz to 20MHz
- Voltage rms: 3 mV
- Voltage peak-to-peak: 30 mV
- Current rms: 30 mA Readback Accuracy at 25 degrees C plus/-5 degrees C
- Voltage: 0.07%, 6 mV
- Current: 0.3%, 25 mA
Rent or lease the Keysight (formerly Agilent) 6033A DC power supply at TRS-RenTelco with 24/7 customer support. Request a quote today for calibrated test equipment.
- Configurations
- Resources
--, 120
See Configuration Details
-
120
DC Power supply 104-127VAC operation, 50/60Hz
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Jumper Barrier Block 0.438 in
Qty: 2 -
Cover DC Output
Qty: 1 -
Bar Block Cover
Qty: 1 -
Terminal Block 4-Pin Connector note: installed on some units
Qty: 1 -
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
USB Software I/O Libraries
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies 6033A Manual
Keysight Technologies 6033A Spec Sheet
