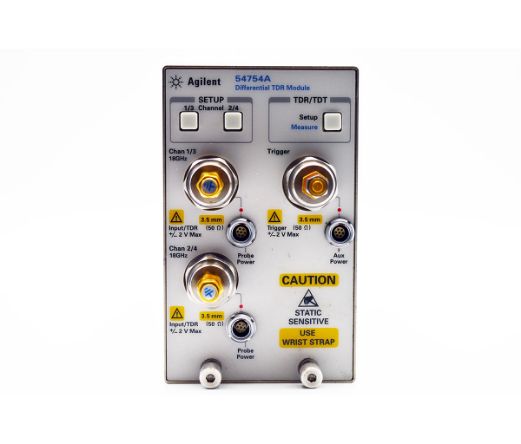

Keysight Technologies 54754A
Differential TDR/TDT Plug-In Module
Use the Keysight 54754A differential and single-ended TDR/TRT module to perform superior and accurate testing with characteristic RMS noise of 0.25 mV (12.4 GHz bandwidth), 0.5 mV (18 GHz bandwidth), and a maximum input signal of plus/minus 2 VDC.
The 54754A offers greater usability with two built-in step generators configurable for 1-port, 2-port common mode, or 2-port differential TDR or TDT measurements. With built-in TDR/TDT calibration, user-selectable edge speed, and optional S-Parameters, the Keysight 54754A makes testing easy and convenient.
Keysight 54754A Features and Specifications:
- Characteristic RMS noise: 0.25 mV (12.4 GHz BW), 0.5 mV (18 GHz BW)
- Maximum input signal: plus/minus 2 VDC
- Two 18-GHz channels with built-in TDR step generators
Get the Keysight (Formerly Agilent) 54754A differential and single-ended TDR/TRT module for rent or lease with 24/7 expert support for your project. Request a quote or contact us for details.
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Kit Wrist Strap
Qty: 1 -
Short 3.5 mm(f)
Qty: 2 -
ESD Mat with Ground Cord Anti-Static
Qty: 1 -
Adapter APC 3.5 mm(f) - APC 3.5 mm(f)
Qty: 3 -
Terminator SMA Input 50 Ohm
Qty: 1 -
CD Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 50C-011-3, 51B-001-3
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Terminator SMA Input 50 Ohm
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
