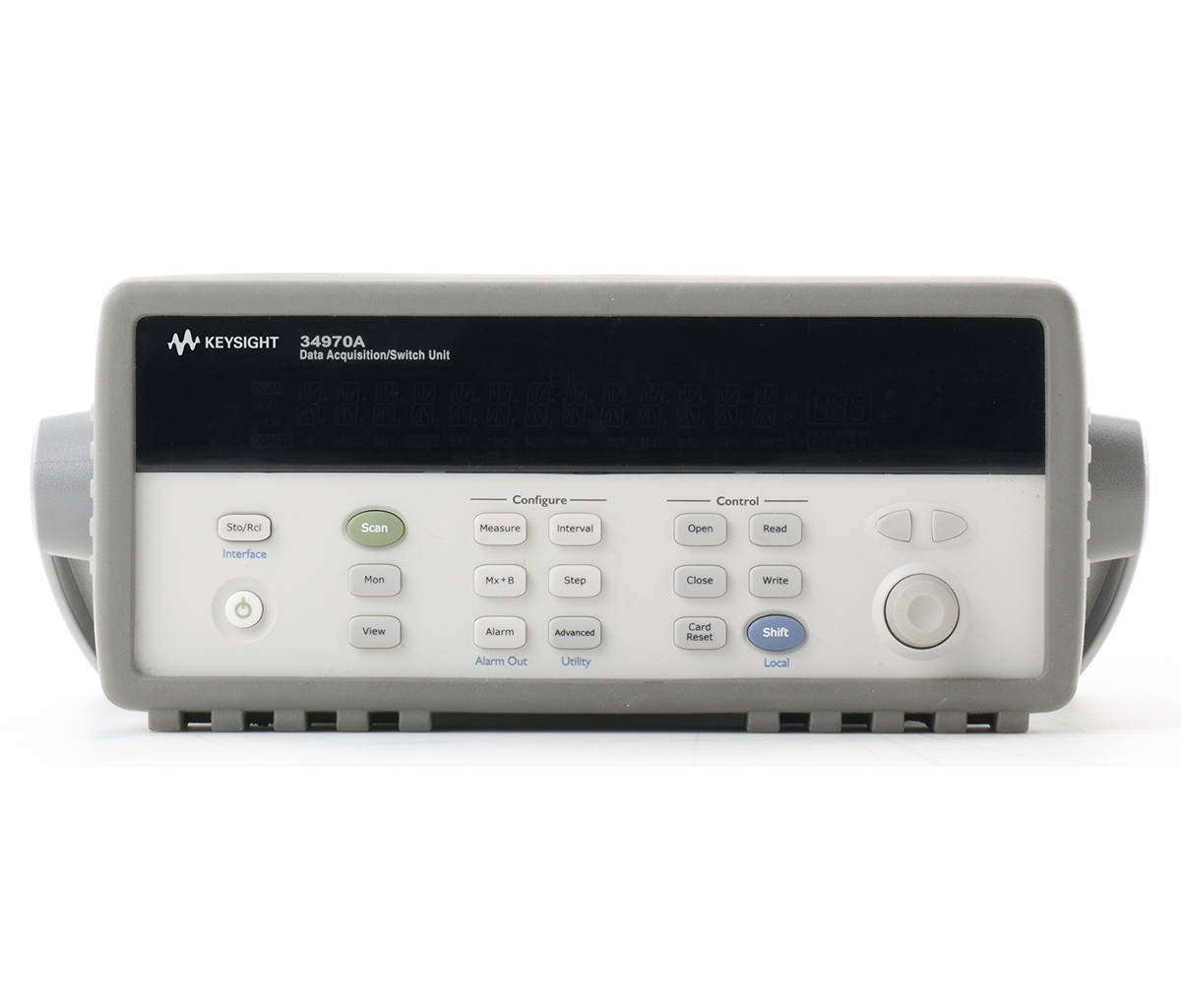

Keysight Technologies 34970A
Data Acquisition Mainframe
The Keysight (formerly Agilent) 34970A data acquisition/data logger switch is a compact, economical, one-box solution for data logging, data acquisition, and general-purpose switching and control applications.
The 34970A is a full-featured, three-slot data acquisition mainframe that includes a built-in 6.5-digit DMM and can operate as a stand-alone device. Its 50,000 readings of non-volatile memory holds data even when power is off.
Each channel measures up to 11 different functions, eliminating the need for additional signal conditioning accessories. The screw-terminal connections remove the need for terminal blocks. The module 34901A comes with a built-in thermocouple reference and 20 two-wire channels.
You can use eight optional plug-in modules to create a compact data logger, full-featured data acquisition system, or a low-cost switching unit. The unique relay maintenance feature counts every closure on every switch for easy, predictable relay maintenance.
Key Features and Specifications
- Keysight BenchVue data logger software license (BV0006B) provides easy test configuration setup and real-time data display and analysis. You can use the software with DAQ970A, 34972A, and 34980A. You can connect and control instruments and easily automate test sequences.
- Mainframe with GPIB and RS-232 interfaces for SCPI compatibility to export data easily
- 6 1/2-digit 22-bit internal DMM that scans up to 250 channels per second
- Eight switch and control plug-in modules
- Signal conditioning measures thermocouples, RTDs and thermistors, AC/DC volts and current, resistance, and frequency with built-in signal conditioning
- Hi/Lo alarm limits on each input channel
- Four TTL alarm outputs
- Free BenchLink data logger software
- Intuitive front panel with task-oriented self-guiding menus
- Battery-backed real-time clock for pacing scans and timestamping readings
- Up to 96 matrix cross points or 120 single-ended channels
- DC voltage range: 100mV to 300V
- True RMS AC voltage range: 100mV to 300V (3Hz to 300kHz)
- Resistance range: 100 ohms to 100 M ohms
- Power supply: 100 V/120 V/220 V/240 V /- 10%.
If you need a lesser DC scan rate of 45 channels per second and an accuracy of 0.0024%, check out the Fluke 2638A data acquisition system.
What Are the Common Applications of Data Logging?
Data loggers record information over time for a variety of applications. You can use Keysight 34970A data loggers to record temperature, humidity, wind speed, solar radiation, road traffic, tank levels, and other parameters.
Keysight (Formerly Agilent) 34970A Accessories
- Test report
- Instruction manual
- Quick-start kit
- Includes BV0006B Data Acquisition app
- Rackmount kit You can check for these optional accessories:
- 11062A - Kelvin clip set
- 34307A - Ten-pack of J-type thermocouples
- 34308A - Five-pack of 10 k ohms thermistors
- 34161A - Accessories pouch
- 34131A - Hard transit case
- E5810A - LAN/GPIB gateway
- 82357B - USB/GPIB converter
- 34970-80010 - DMM field installation kit
- 34905-60001 - Kit of ten SMB-to-BNC adapter cables, 50 ohms
- 34906-60001 - Kit of ten SMB-to-BNC adapter cables, 75 ohms
Rent or lease Keysight Technologies 34970A data acquisition/switch units or model 34972A units online at TRS-RenTelco. Call us at 800.874.7123 to learn about Keysight (formerly Agilent) 34970A price information and other details.
