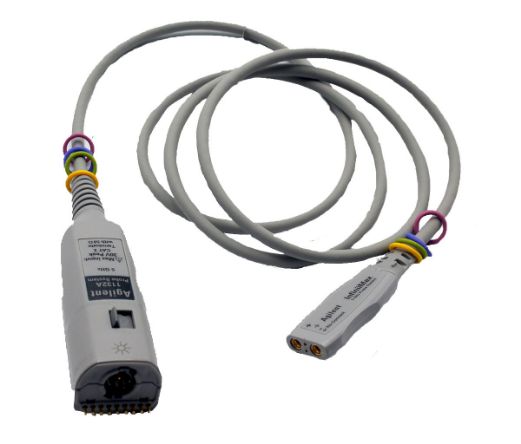

Keysight Technologies 1132A

5 GHz Probe

The Keysight 1132A 5 GHz is a differential probe amplifier used for high-speed differential or single-ended probing in embedded designs, is a perfect complement to the Infiniium 80000 or 90000 Series oscilloscopes with 4 GHz bandwidth.

Features like extremely low input capacitance, flat frequency response and the patented resistor probe tip technology provide ultra-low loading of the DUT and superior signal fidelity. Supporting a wide range of real-world applications, the Keysight 1132A has an extensive line up of probe heads and accessories that can meet the most demanding mechanical access requirements. The probe head topology of the Keysight 1132A allows higher performance and more flexibility.

Keysight 1132A - Features and Specifications:

  • Bandwidth: 5 GHz
  • DC Offset Range: plus/- 12V
  • Maximum Voltage: plus/- 30V
  • Range: Dynamic Range: plus/- 2.5V
  • Single Ended Input R: 25 kOhm
  • Single Ended Input C: 0.44-0.67 pF
  • Differential Input R: 50 kOhm
  • Differential Input C: 0.27-0.34 pF

Rent or purchase the Keysight 1132A TRS-RenTelco with 24/7 customer support.

The latest test equipment - We understand your needs for the latest and the best in test equipment and are one of the first to buy newly introduced equipment from top T&M manufacturers. If you need a new equipment model, we probably have it in stock already.

Calibrated equipment - Our experienced team of metrologists and technicians calibrate each product like the Keysight 1132A to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory.

Fast delivery options - We are located on the grounds of DFW Airport with a FedEx pickup time of 10:00 PM each day. This lets us take orders as late as 8:00 PM and have the equipment delivered the following morning.

Contact us and request a quote today.

Read More
  • Configurations
  • Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Ground Wire Differential

    Qty: 1
  • Magnifying Lens

    Qty: 1
  • Carrycase

    Qty: 1
  • Velcro and loop 5/8" round

    Qty: 1
  • Velcro and loop 5/8" round

    Qty: 1
  • Velcro Strip

    Qty: 1
  • USB Drive with Software and Manuals

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.
