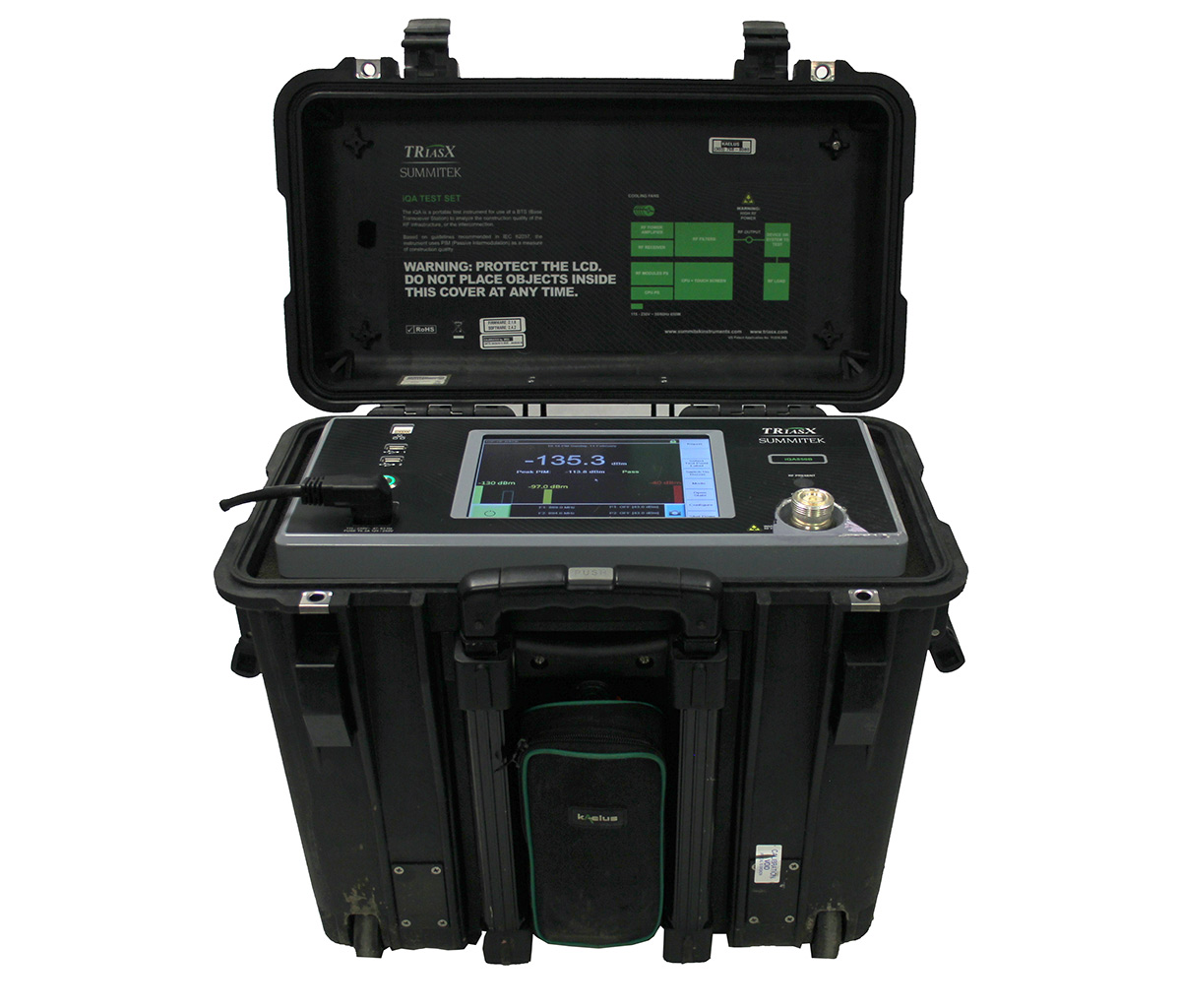

Kaelus IQA-850B
PIM Test Set 800 MHz, 20 W, 7/16 DIN(f)
The Kaelus (formerly Summitek) iQA-850B is an 850 MHz PIM analyzer, belonging to the Kaelus iQA series. The iQA series is designed for those applications where greater operator control is desired or required to better analyze and understand cellular base station RF infrastructure quality and performance. These systems provide an interactive operator interface via a touch screen LCD display.
As with the IMT series analyzers, the Kaelus iQA analyzers perform an industry standard two tone PIM measurement at 20 Watts per carrier. The operator can select the frequency and power level of the test tones and measure reflected as well as IM3, IM5, and IM7 results. The Kaelus iQA test sets are completely portable and have the ability to provide hard copy reports.
The major specifications of the Kaelus iQA-850B PIM analyzer are as follows:
- Frequency: 850 MHz
- Transmitter Range: 869 ? 894 MHz
- Receiver Range: 824 ? 849 MHz
- Measurement Range: -50 dBm to -128 dBm
- Measurement Noise Floor: < -128 dBm
- Power Accuracy (per tone): -0.5 dB
Get the Kaelus (formerly Summitek) iQA-850B PIM analyzer for rent or for lease from TRS-RenTelco with our 365-day, 24/7 customer support. Our team of experienced metrologists and technicians calibrate the equipment to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. If you wish to rent or lease this equipment, we also offer a 12 months part and labor warranty. Contact us to request a quote today.
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Wrench Thin Open Ended
Qty: 1 -
Socket 32 mm
Qty: 1 -
Adapter 7/16 Din(m) - 7/16 Din(f)
Qty: 1 -
void- USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
PIM Measurement
Kaelus IQA Spec Sheet
