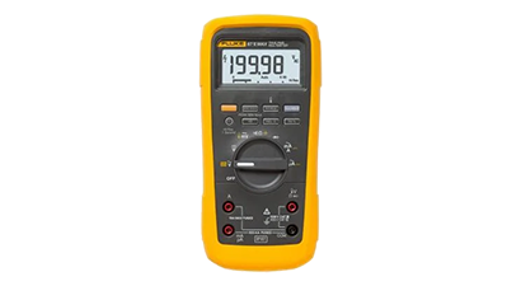

Fluke 87V digital multimeters offer improved measurement functions, troubleshooting capabilities, resolution, and accuracy that help solve problems in high-speed motor drives, plant automation, power distribution, and electromechanical equipment. They work efficiently in loud, rugged, high-frequency, high-energy noise-generated, and high-altitude environments.
Key Features and Specifications
- Low pass filter helps generates accurate measurements on VFDs
- Peak capture produces intermittents as fast as 250 uS
- Capture fast-changing, unstable signals with an analog bar graph
- Use Touch Hold to retain the readings on the display after you remove the test probes
- Designed to withstand spikes of 8,000V
- AC voltage accuracy: /- (0.7 percent 2) True RMS
- True RMS AC voltage and current: 1,000V/10A
- DC voltage and current: 1,000V/10A
- Maximum resistance: 50 M ohms
- Maximum capacitance: 9,999 uF
- Maximum frequency: 200kHz
- Maximum conductance: 60.00 nS
- Diode range: 3V
- Operating temperature: -20 degrees C to 55 degrees C
- Storage temperature: -40 degres C to 60 degrees C
- IP rating: IEC 60529: IP 67
- Agency approvals: CE, CSA, RCM
- 3-3/4-digit resolution at 6,000 counts, 4-1/2-digit resolution at 20,000 counts
- Shock: 1-meter drop, as per IEC 61010-1:2001
- Limited lifetime warranty
Fluke 87V Industrial Multimeter Safety Rating
The Fluke DMM model 87V complies with ANSI/ISA S82.01-2004, CAN/CSA 22.2 No. 1010.1:2004 to CAT III 1000 V, IEC 664 CAT IV 600 V.
It is UL listed to UL61010-1 and TUV licensed to EN 61010-1:2001.
Applications
You can use the Fluke multimeter 87V across a range of industries for maintenance and repair and test and measurement jobs. The 87V digital multimeter is popular with R&D engineers during the installation and troubleshooting phases of a project or product development.
87V Multimeter Accessories
The manufacturer packaging comes with the following accessories:
- TL75 test leads
- AC72 alligator clips
- Holster
- Pre-installed 9V battery
- Temperature probe
- User manual
- Operator's guide
Optional accessories include:
- Fluke TPAK ToolPak magnetic meter hanger
- Fluke TL175 TwistGuard test lead
- Fluke C25 large soft case for DMMs
- Fluke i1010 AC/DC current clamp
- Fluke 80PK-8 pipe clamp temperature probe
For the full range of accessories, please speak to our customer support team.
Rent or lease the Fluke 87V True RMS multimeter online at TRS-RenTelco. If you need benchtop DMMs, we have options like the Fluke 8846A. Check out our full range of digital multimeters.
We calibrate equipment in house at our ISO/IEC 17025:2017-compliant laboratory for maximum accuracy in measurements. Get 24/7 customer support and fast shipping options nationwide.
Add to cart or fill out the contact form with your name and email address. You can also contact us at 800.874.7123.
