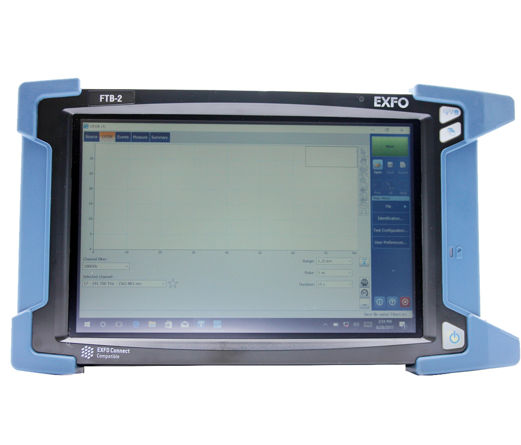

EXFO FTB-2-740C-DWC
SM Tunable DWDM OTDR Module C-band 1528/1563 nm
Rent or Lease
KEY FEATURES
- C-BAND ITU grid channel selection to test through DWDM MUX/DEMUX
- In-service testing of active networks
- High-resolution and short dead zones
- Select favorite or imported channels list
APPLICATIONS
- Single-ended construction and troubleshooting solution
- DWDM Metro Ethernet links
- Commercial services deployments
- Fiber deep and node splitting
- CBH Antenna feeds
- Configurations
- Resources
- FAQsAI
--, EA, EUI-91, VER A/B
See Configuration Details
-
EA
APC
-
EUI-91
SC
-
VER A/B
ITU Channels 17-61 (191.7 THz - 196.1 THz)
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power 3-Prong Keyed
Qty: 1 -
Stylus
Qty: 1 -
Battery Lithium Ion 75W 14.4 V
Qty: 1 -
AC Adapter Switching Input 100 V - 240 V 50 Hz - 60 Hz Output 24 V 3.75 A 0-90 W
Qty: 1 -
Mainframe Handheld 2-Slot
Qty: 1 -
Module OTDR
Qty: 1 -
Carrycase
Qty: 1 -
Mouse Optical
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, EA, EUI-91, VER C/D
See Configuration Details
-
EA
APC
-
EUI-91
SC
-
VER C/D
ITU-T G694.1 Channels 12-62 (191.2 THz - 196.2 THz)
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power 3-Prong Keyed
Qty: 1 -
Mainframe Handheld 2-Slot
Qty: 1 -
Module OTDR
Qty: 1 -
Carrycase
Qty: 1 -
Stylus
Qty: 1 -
AC Adapter Switching Input 100 V - 240 V 50 Hz - 60 Hz Output 24 V 3.75 A 0-90 W
Qty: 1 -
Mouse Optical
Qty: 1 -
Battery Lithium Ion 75W 14.4 V
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Show More
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What is the FTBx-740C-DWC tunable OTDR designed for?
The FTBx-740C-DWC is a C-band DWDM tunable OTDR specifically designed for metro Ethernet link characterization in dense wavelength division multiplexing networks. It enables complete end-to-end link characterization and troubleshooting through field mux/demux channels without impacting other customer wavelengths.
Which platforms are compatible with the FTBx-740C-DWC module?
The FTBx-740C-DWC module is compatible with the FTB-2 and FTB-2 Pro platforms. These platforms provide a compact, multifunction testing solution with multitouch displays, WiFi connectivity, and Windows 10 operating system for versatile field testing capabilities.
What fiber inspection probe works with the FTBx-740C-DWC?
The FTBx-740C-DWC works with the FIP-400B fiber inspection probe, which is available in both Wi-Fi and USB configurations. This probe enables connector certification to help ensure accurate OTDR measurements before testing begins.
Does the FTBx-740C-DWC include linear view for OTDR trace analysis?
Yes, the FTBx-740C-DWC includes linear view functionality, which has been available on EXFO OTDRs since 2006. This feature simplifies reading OTDR traces by displaying icons in a linear format for each wavelength, converting complex graph data points into easily identifiable reflective or non-reflective icons with applied pass/fail thresholds.
How is dynamic range measured on the FTBx-740C-DWC?
The FTBx-740C-DWC dynamic range is specified as typical values with three-minute averaging at an SNR of 1. All specifications are valid at 23 degrees C plus or minus 2 degrees C with an FC/APC connector, unless otherwise stated.
What are the dead zone specifications for the FTBx-740C-DWC singlemode modules?
The FTBx-740C-DWC singlemode modules have a typical dead zone specification measured at a reflectance of -45 dB using a 5-ns pulse. These short dead zones are critical for accurately characterizing closely spaced events in metro network deployments where DWDM components may be installed in close proximity.
Can the FTBx-740C-DWC perform in-service testing on live DWDM fiber?
Yes, the FTBx-740C-DWC supports in-service testing using the customer's wavelength port. This allows technicians to troubleshoot and characterize fiber links without impacting other customer wavelengths on the DWDM system and without incurring service downtime.
Does the FTBx-740C-DWC account for fiber index uncertainty in distance measurements?
The distance accuracy specification for the FTBx-740C-DWC does not include uncertainty due to fiber index of refraction. Users must configure the correct index of refraction (IOR) value for the specific fiber type being tested to achieve the most accurate distance and event location measurements.
