AEMC 8436 New

AEMC - 8436

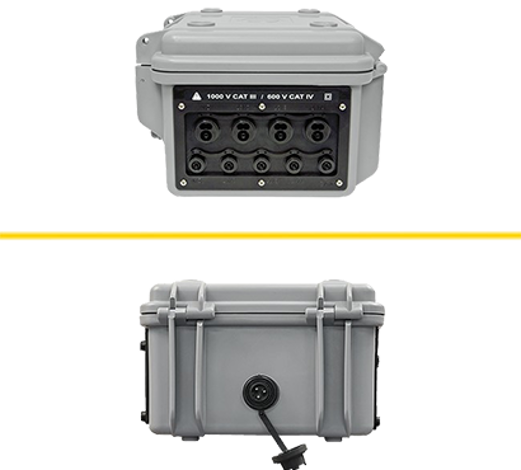

The PowerPad® III Model 8436 is a three-phase power quality analyzer that is easy-to-use, compact and shock resistant. It enables technicians and engineers to measure and carry out diagnostics and power quality work on one-, two- or three- phase networks. Five voltage and four current inputs are provided. It is IEC 61000-4-30 Class B and safety rated to 600 V CAT IV. It is rated IP67 when used with the flexible sensor Ampflex® 196 A.

The Model 8436 can record 2 GB of trend data on a memory card. Additional internal memory is used to let you store alarms, transients, and snapshot data. The user can store up to 50 screen snapshots, up to 210 captured transients that contain four cycles for each active input, and >16,000 alarm events from up to 40 different parameters. Trend data can also be recorded for days, weeks, or even months. Inrush current can also be captured and stored.

IMPORTANT WARRANTY NOTE: By registering online within 30 days from the date of purchase, your warranty will be extended to 3 years.

Model 8436 Kit - Cat. #2136.44: Extra large tool bag, accessory pouch, 5 ft USB cable, (5) 10 ft black voltage leads with alligator clips, (12) color-coded input ID markers, 110 V US power cord, line power adapter (100-1000) VDC to 400 Hz, (4) water-tight AmpFlex 196A-24-BK, NiMH battery, SD card, Quick Start Guide, high-voltage warning card, and a USB drive with DataView® software and user manual.

8436 Product Highlights

• Measurement of TRMS voltages up to 1000 Vrms AC/DC for two-, three-, four- or five-wire systems

• Measurement of TRMS currents up to 10,000 Arms (sensor dependent)

• 65 µs sample rate

• Direct measurement of neutral current and voltage

• Record and display trend data as fast as once per second for one month for up to 25 variables

• Transient detection on all V and I inputs (up to 210)

• Selectable PT and CT ratios

• Inrush current measurement

• Calculation of Crest Factors for V and A

• Calculation of Factor K for transformers
